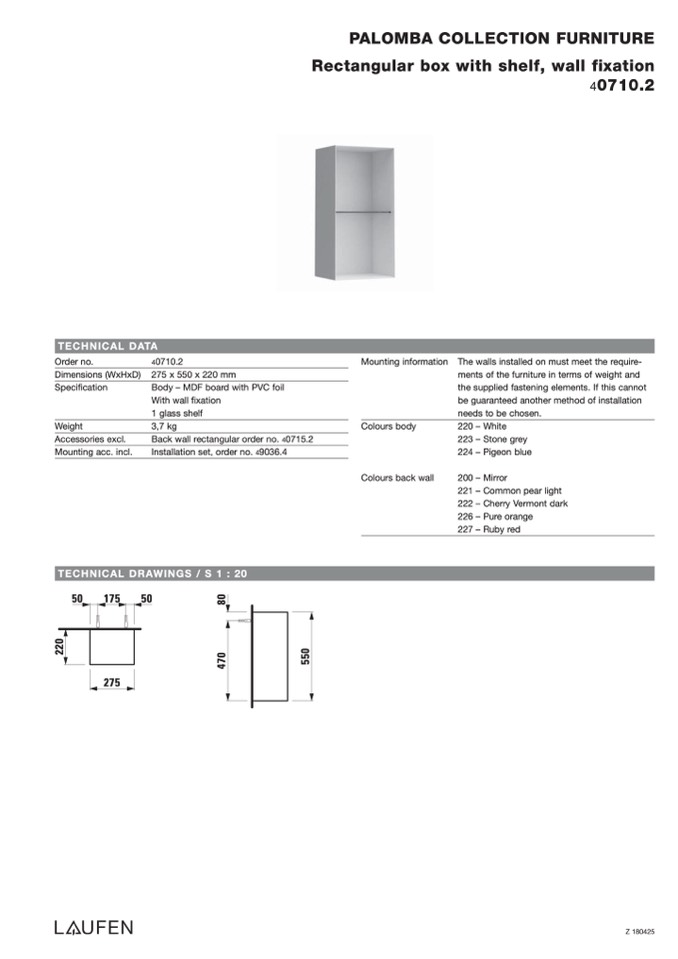

Order no.
Dimensions (WxHxD)
Specification
Weight
Accessories excl.
Mounting acc. incl.
4
0710.2
275 x 550 x 220 mm
Body – MDF board with PVC foil
With wall fixation
1 glass shelf
3,7 kg
Back wall rectangular order no. 40715.2
Installation set, order no. 49036.4
Mounting information
Colours body
Colours back wall
The walls installed on must meet the require-
ments of the furniture in terms of weight and
the supplied fastening elements. If this cannot
be guaranteed another method of installation
needs to be chosen.
220 – White
223 – Stone grey
224 – Pigeon blue
200 – Mirror
221 – Common pear light
222 – Cherry Vermont dark
226 – Pure orange
227 – Ruby red
40710.2
TECHNICAL DATA
TECHNICAL DRAWINGS / S 1 : 20
50
175
50
275
Z 180425
2
2
0
4
7
0
8
0
5
5
0
