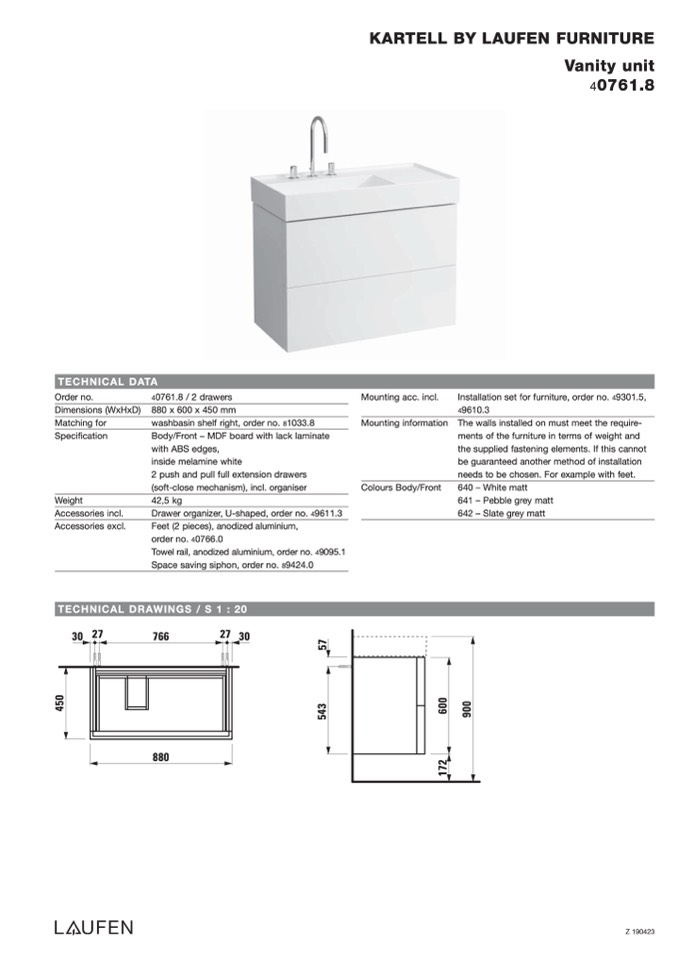

KARTELL BY LAUFEN FURNITURE

Vanity unit

40761.8

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for

Specification

Weight

Accessories incl.

Accessories excl.

4

0761.8 / 2 drawers

880 x 600 x 450 mm

washbasin shelf right, order no. 81033.8

Body/Front – MDF board with lack laminate

with ABS edges,

inside melamine white

2 push and pull full extension drawers

(soft-close mechanism), incl. organiser

42,5 kg

Drawer organizer, U-shaped, order no. 49611.3

Feet (2 pieces), anodized aluminium,

order no. 40766.0

Towel rail, anodized aluminium, order no. 49095.1

Space saving siphon, order no. 89424.0

Mounting acc. incl.

Mounting information

Colours Body/Front

Installation set for furniture, order no. 49301.5,

4

9610.3

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

640 – White matt

641 – Pebble grey matt

642 – Slate grey matt

TECHNICAL DRAWINGS / S 1 : 20

30 27

766

27 30

880

Z 190423

1

7

2

6

0

0

9

0

0

4

5

0

5

4

3

5

7
