TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for

Specification

Weight

4

0829.1 / door hinge left, flaps right

1200 x 608 x 270 mm

washbasin, order no. 81033.4, 81033.5, 81033.8,

8

1033.9, 81233.2 (only tap bank left), 81333.2,

8

1533.1

Body/Front – MDF board with lack laminate

with ABS edges,

inside melamine white

1 push and pull door (bottom left)

2 push and pull flaps (right side)

29,0 kg

Accessories excl.

Mounting acc. incl.

Mounting information

Colours Body/Front

Feet (2 pieces), anodized aluminium,

order no. 40766.0

Space saving siphon, order no. 89424.0

Installation set for furniture, order no. 49301.5,

4

9614.4

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

640 – White matt

641 – Pebble grey matt

642 – Slate grey matt

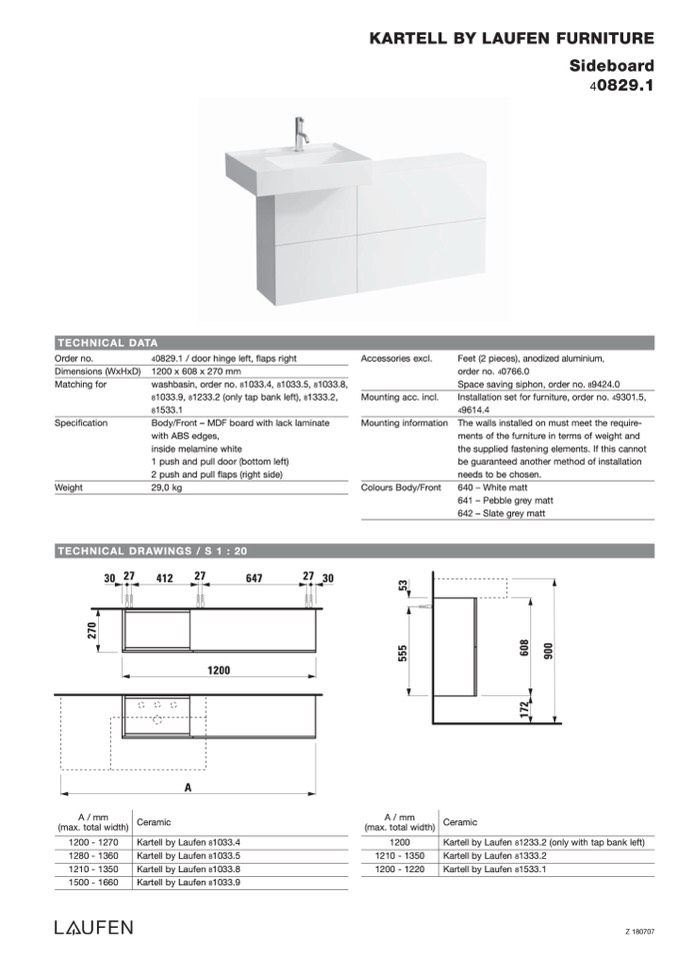

KARTELL BY LAUFEN FURNITURE

Sideboard

40829.1

TECHNICAL DRAWINGS / S 1 : 20

30 27

412

27

647

27 30

1200

A

A / mm

(max. total width)

1200 - 1270

1280 - 1360

1210 - 1350

1500 - 1660

Ceramic

Kartell by Laufen

Kartell by Laufen

Kartell by Laufen

Kartell by Laufen

8

1033.4

8

1033.5

8

1033.8

8

1033.9

A / mm

(max. total width)

1200

1210 - 1350

1200 - 1220

Ceramic

Kartell by Laufen 81233.2 (only with tap bank left)

Kartell by Laufen 81333.2

Kartell by Laufen 81533.1

Z 180707

1

7

2

6

0

8

9

0

0

5

5

5

5

3

2

7

0
