Order no.

Dimensions (WxHxD)

Specification

Weight

Accessories excl.

Mounting acc. incl.

4

0828.1 / door hinge left

400 x 1300 x 270 mm

Body/Front – MDF board with lack laminate

with ABS edges,

inside melamine white

1 push and pull door

4 glass shelves (fixed)

25,5 kg

Feet (2 pieces), anodized aluminium,

order no. 40766.0

Installation set for furniture, order no. 49302.1

Mounting information

Colours Body/Front

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

640 – White matt

641 – Pebble grey matt

642 – Slate grey matt

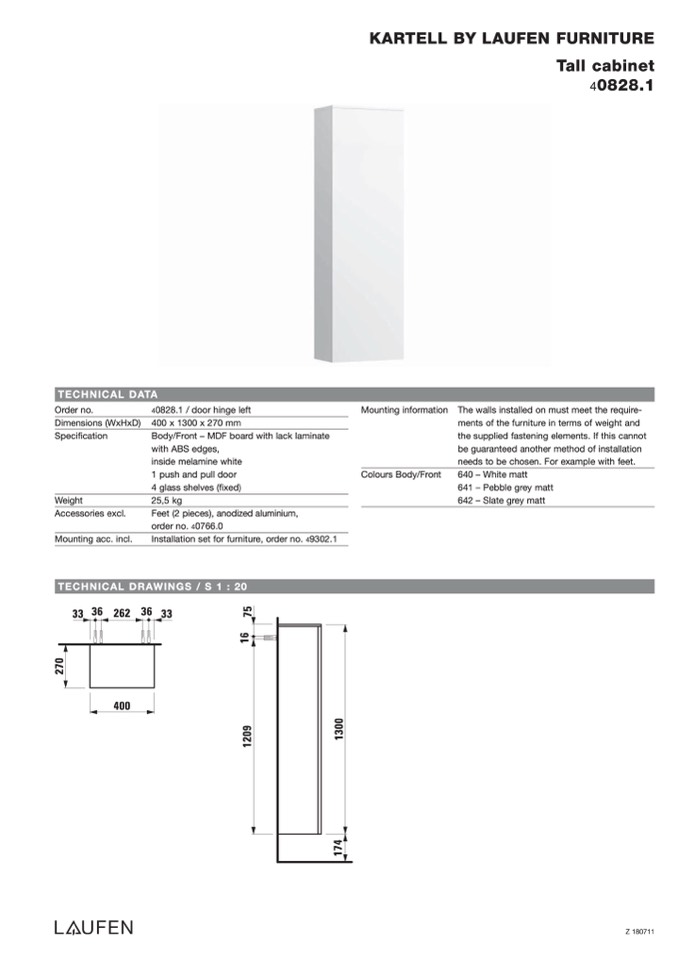

KARTELL BY LAUFEN FURNITURE

Tall cabinet

40828.1

TECHNICAL DATA

TECHNICAL DRAWINGS / S 1 : 20

33 36 262 36 33

400

Z 180711

1

7

4

1

3

0

0

1

2

0

9

1

6

7

5

2

7

0
