TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for

Specification

Weight

Accessories excl.

4

0601.4 / 2 drawers

777 x 600 x 457 mm

Small washbasin, order no. 81685.2

Body – inside melamine dark grey particle board,

outside 6 mm MDF panels

Front – inside melamine dark grey

Traffic grey: MDF panel, lacquered matt

Blacked oak: oak veneer coated particle

board with solid oak frame

White glossy: MDF panel, lacquered

1 cut out

2 push and pull full extension drawers

627, 631 – 38,5 kg

628 – 39,5 kg

Feet (2 pieces), white order no. 40607.4

Space saving siphon, order no. 89424.0

Mounting acc. incl.

Mounting information

Colours Body/Front/

Colours Feet

Installation set for furniture, order no. 49114.0,

4

9301.5

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

627 – Traffic grey

628 – Blacked oak

631 – White glossy

170 – White matt

631 – White glossy

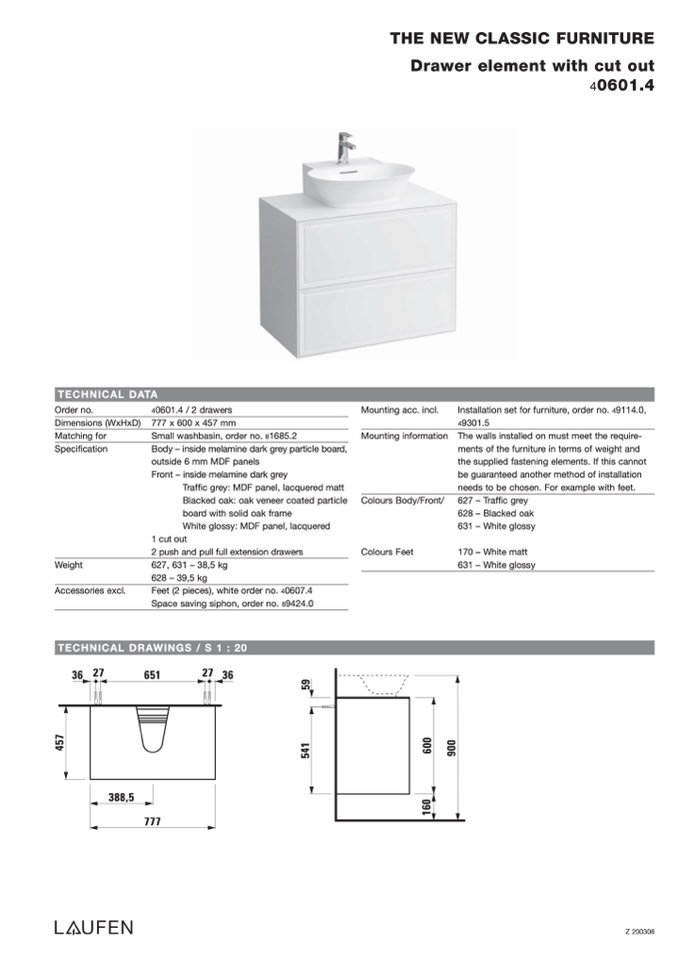

THE NEW CLASSIC FURNITURE

Drawer element with cut out

40601.4

TECHNICAL DRAWINGS / S 1 : 20

36 27

651

27 36

388,5

777

Z 200306
