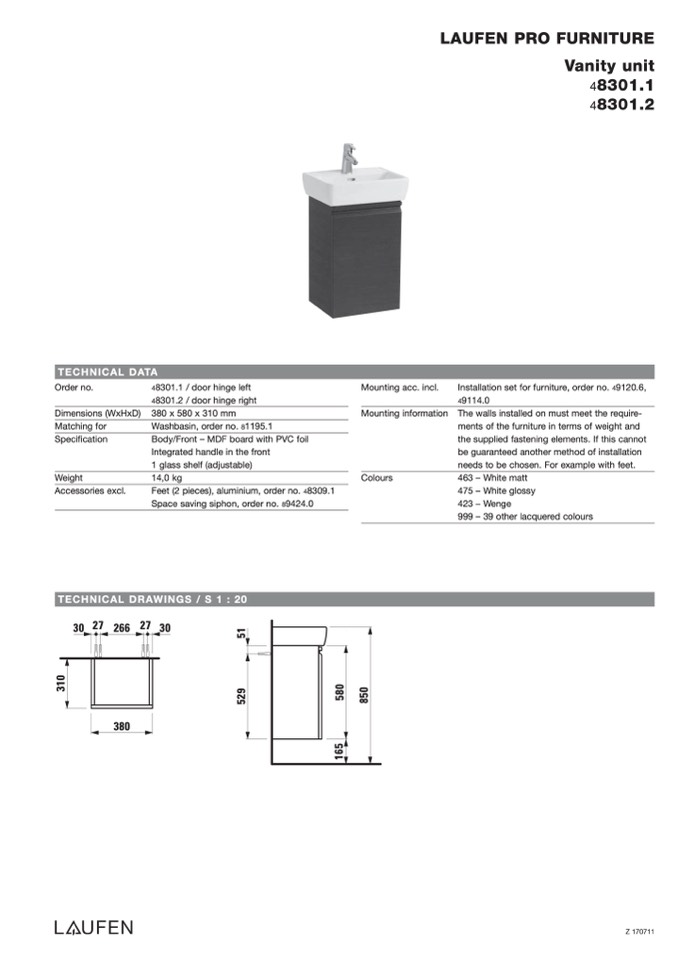

LAUFEN PRO FURNITURE

Vanity unit

48301.1

48301.2

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for

Specification

Weight

Accessories excl.

4

8301.1 / door hinge left

4

8301.2 / door hinge right

380 x 580 x 310 mm

Washbasin, order no. 81195.1

Body/Front – MDF board with PVC foil

Integrated handle in the front

1 glass shelf (adjustable)

14,0 kg

Feet (2 pieces), aluminium, order no. 48309.1

Space saving siphon, order no. 89424.0

Mounting acc. incl.

Mounting information

Colours

Installation set for furniture, order no. 49120.6,

4

9114.0

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

463 – White matt

475 – White glossy

423 – Wenge

999 – 39 other lacquered colours

TECHNICAL DRAWINGS / S 1 : 20

30 27 266 27 30

380

Z 170711

1

6

5

5

8

0

8

5

0

3

1

0

5

2

9

5

1
