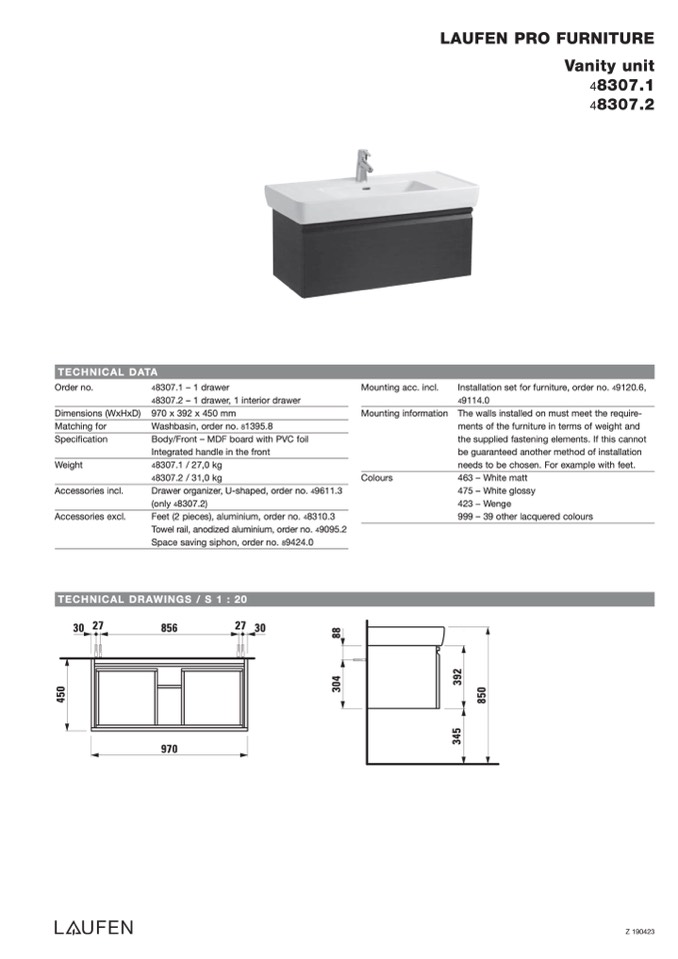

LAUFEN PRO FURNITURE

Vanity unit

48307.1

48307.2

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for

Specification

Weight

Accessories incl.

Accessories excl.

4

8307.1 – 1 drawer

4

8307.2 – 1 drawer, 1 interior drawer

970 x 392 x 450 mm

Washbasin, order no. 81395.8

Body/Front – MDF board with PVC foil

Integrated handle in the front

4

8307.1 / 27,0 kg

4

8307.2 / 31,0 kg

Drawer organizer, U-shaped, order no. 49611.3

(only 48307.2)

Feet (2 pieces), aluminium, order no. 48310.3

Towel rail, anodized aluminium, order no. 49095.2

Space saving siphon, order no. 89424.0

Mounting acc. incl.

Mounting information

Colours

Installation set for furniture, order no. 49120.6,

4

9114.0

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

463 – White matt

475 – White glossy

423 – Wenge

999 – 39 other lacquered colours

TECHNICAL DRAWINGS / S 1 : 20

30 27

856

27 30

970

Z 190423

3

4

5

3

9

2

4

5

0

8

5

0

3

0

4

8

8
