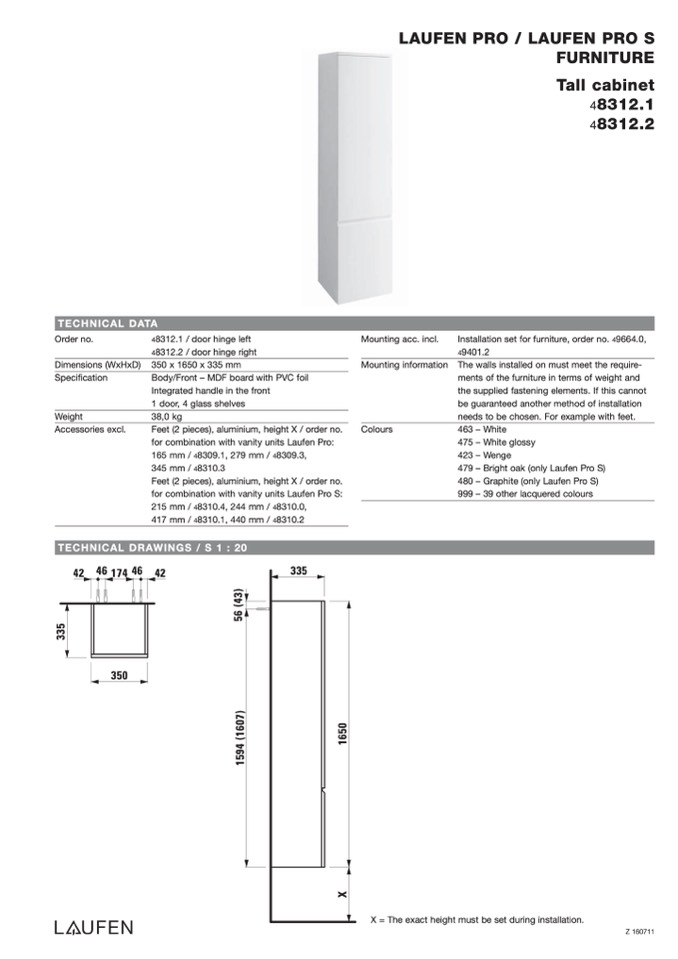

LAUFEN PRO / LAUFEN PRO S

FURNITURE

Tall cabinet

48312.1

48312.2

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Specification

Weight

Accessories excl.

4

8312.1 / door hinge left

4

8312.2 / door hinge right

350 x 1650 x 335 mm

Body/Front – MDF board with PVC foil

Integrated handle in the front

1 door, 4 glass shelves

38,0 kg

Feet (2 pieces), aluminium, height X / order no.

for combination with vanity units Laufen Pro:

165 mm / 48309.1, 279 mm / 48309.3,

345 mm / 48310.3

Feet (2 pieces), aluminium, height X / order no.

for combination with vanity units Laufen Pro S:

215 mm / 48310.4, 244 mm / 48310.0,

417 mm / 48310.1, 440 mm / 48310.2

Mounting acc. incl.

Mounting information

Colours

Installation set for furniture, order no. 49664.0,

4

9401.2

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

463 – White

475 – White glossy

423 – Wenge

479 – Bright oak (only Laufen Pro S)

480 – Graphite (only Laufen Pro S)

999 – 39 other lacquered colours

TECHNICAL DRAWINGS / S 1 : 20

42 46 174 46

42

335

350

X = The exact height

must be set during installation.

Z 160711

X

1

6

5

0

1

5

9

4

(

1

6

0

7

)

5

6

(

4

3

)

3

3

5
