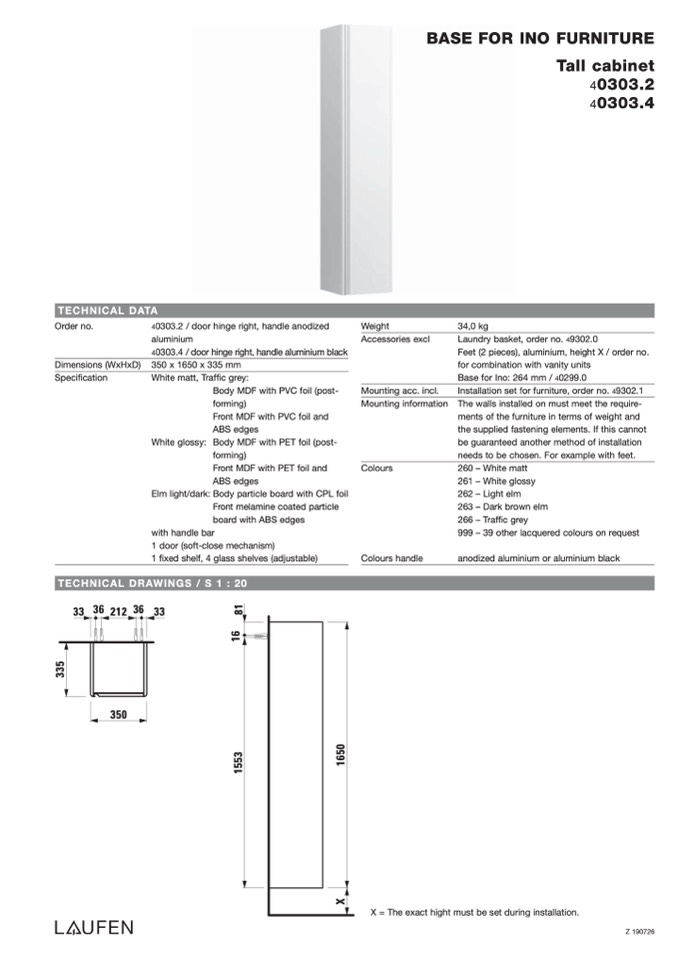

BASE FOR INO FURNITURE

Tall cabinet

40303.2

40303.4

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Specification

4

0303.2 / door hinge right, handle anodized

aluminium

4

0303.4 / door hinge right, handle aluminium black

350 x 1650 x 335 mm

White matt, Traffic grey:

Body MDF with PVC foil (post-

forming)

Front MDF with PVC foil and

ABS edges

White glossy: Body MDF with PET foil (post-

forming)

Front MDF with PET foil and

ABS edges

Elm light/dark: Body particle board with CPL foil

Front melamine coated particle

board with ABS edges

with handle bar

1 door (soft-close mechanism)

1 fixed shelf, 4 glass shelves (adjustable)

Weight

Accessories excl

Mounting acc. incl.

Mounting information

Colours

Colours handle

34,0 kg

Laundry basket, order no. 49302.0

Feet (2 pieces), aluminium, height X / order no.

for combination with vanity units

Base for Ino: 264 mm / 40299.0

Installation set for furniture, order no. 49302.1

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

260 – White matt

261 – White glossy

262 – Light elm

263 – Dark brown elm

266 – Traffic grey

999 – 39 other lacquered colours on request

anodized aluminium or aluminium black

TECHNICAL DRAWINGS / S 1 : 20

33 36 212 36 33

350

X = The exact hight must be set during installation.

Z 190726

X

1

6

5

0

1

5

5

3

1

6

8

1

3

3

5
