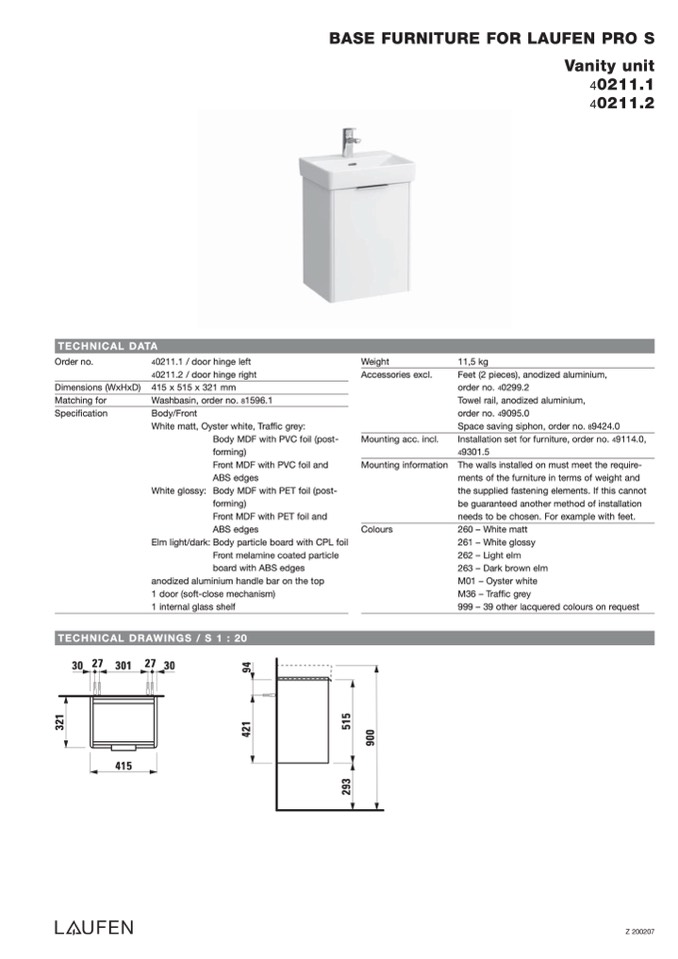

BASE FURNITURE FOR LAUFEN PRO S

Vanity unit

40211.1

40211.2

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for

Specification

4

0211.1 / door hinge left

4

0211.2 / door hinge right

415 x 515 x 321 mm

Washbasin, order no. 81596.1

Body/Front

White matt, Oyster white, Traffic grey:

Body MDF with PVC foil (post-

forming)

Front MDF with PVC foil and

ABS edges

White glossy: Body MDF with PET foil (post-

forming)

Front MDF with PET foil and

ABS edges

Elm light/dark: Body particle board with CPL foil

Front melamine coated particle

board with ABS edges

anodized aluminium handle bar on the top

1 door (soft-close mechanism)

1 internal glass shelf

Weight

Accessories excl.

Mounting acc. incl.

Mounting information

Colours

11,5 kg

Feet (2 pieces), anodized aluminium,

order no. 40299.2

Towel rail, anodized aluminium,

order no. 49095.0

Space saving siphon, order no. 89424.0

Installation set for furniture, order no. 49114.0,

4

9301.5

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

260 – White matt

261 – White glossy

262 – Light elm

263 – Dark brown elm

M01 – Oyster white

M36 – Traffic grey

999 – 39 other lacquered colours on request

TECHNICAL DRAWINGS / S 1 : 20

30 27 301 27 30

415

Z 200207

2

9

3

5

1

5

9

0

0

3

2

1

4

2

1

9

4
