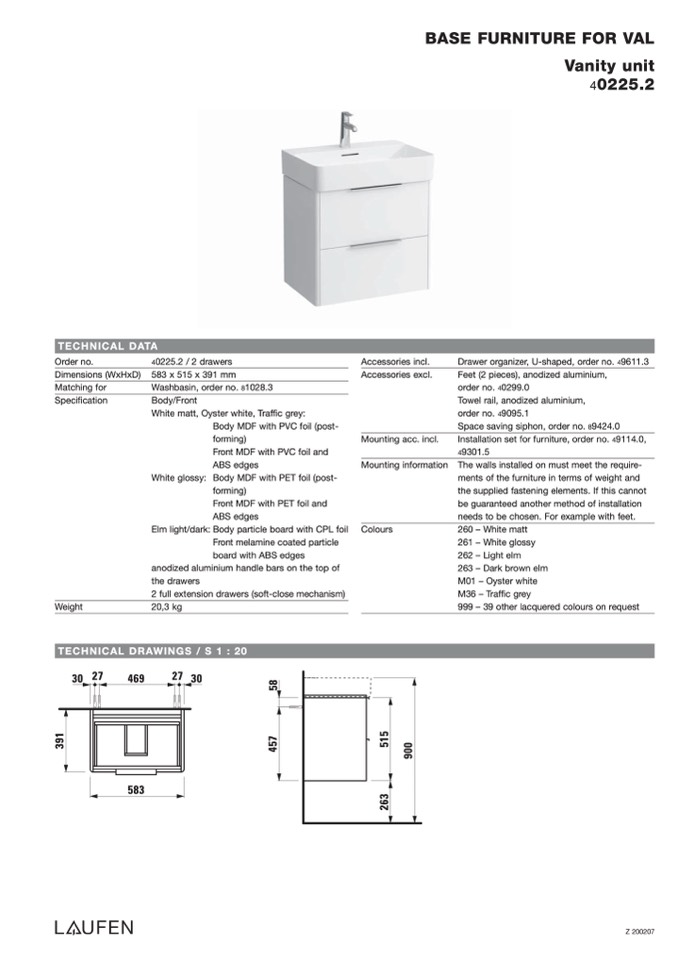

40225.2
TECHNICAL DATA
Order no.
Dimensions (WxHxD)
Matching for
Specification
4
0225.2 / 2 drawers
583 x 515 x 391 mm
Washbasin, order no. 81028.3
Body/Front
White matt, Oyster white, Traffic grey:
Body MDF with PVC foil (post-
forming)
Front MDF with PVC foil and
ABS edges
White glossy: Body MDF with PET foil (post-
forming)
Front MDF with PET foil and
ABS edges
Elm light/dark: Body particle board with CPL foil
Front melamine coated particle
board with ABS edges
anodized aluminium handle bars on the top of
the drawers
2 full extension drawers (soft-close mechanism)
20,3 kg
Accessories incl.
Accessories excl.
Mounting acc. incl.
Mounting information
Colours
Drawer organizer, U-shaped, order no. 49611.3
Feet (2 pieces), anodized aluminium,
order no. 40299.0
Towel rail, anodized aluminium,
order no. 49095.1
Space saving siphon, order no. 89424.0
Installation set for furniture, order no. 49114.0,
4
9301.5
The walls installed on must meet the require-
ments of the furniture in terms of weight and
the supplied fastening elements. If this cannot
be guaranteed another method of installation
needs to be chosen. For example with feet.
260 – White matt
261 – White glossy
262 – Light elm
263 – Dark brown elm
M01 – Oyster white
M36 – Traffic grey
999 – 39 other lacquered colours on request
Weight
TECHNICAL DRAWINGS / S 1 : 20
30 27
469
27 30
583
Z 200207
2
6
3
5
1
5
9
0
0
3
9
1
4
5
7
5
8
