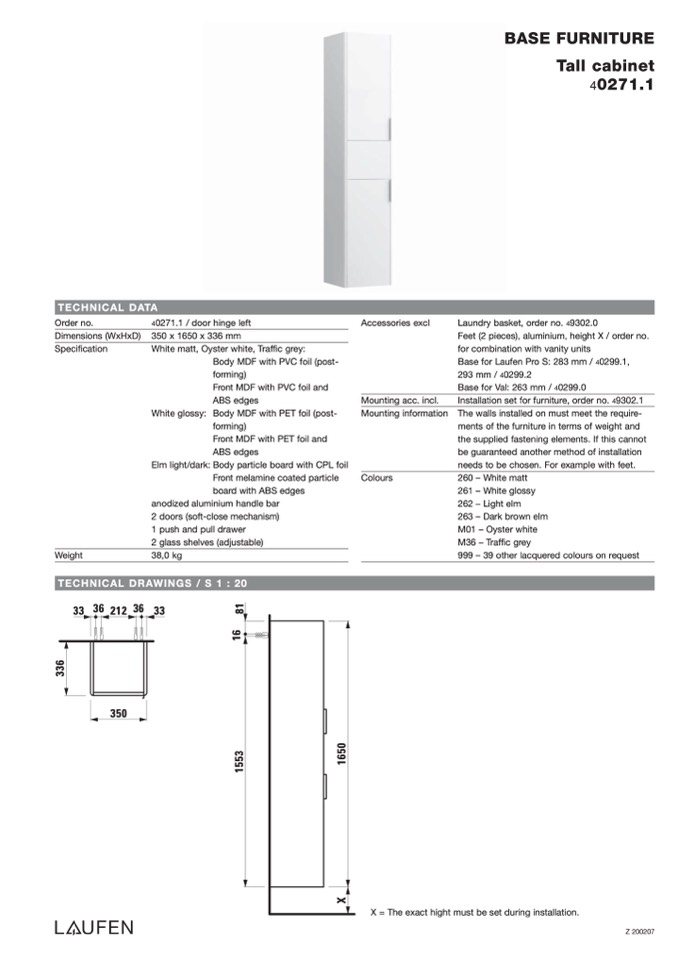

TECHNICAL DATA
Order no.
Dimensions (WxHxD)
Specification
4
0271.1 / door hinge left
350 x 1650 x 336 mm
White matt, Oyster white, Traffic grey:
Body MDF with PVC foil (post-
forming)
Front MDF with PVC foil and
ABS edges
White glossy: Body MDF with PET foil (post-
forming)
Front MDF with PET foil and
ABS edges
Elm light/dark: Body particle board with CPL foil
Front melamine coated particle
board with ABS edges
anodized aluminium handle bar
2 doors (soft-close mechanism)
1 push and pull drawer
2 glass shelves (adjustable)
38,0 kg
Accessories excl
Mounting acc. incl.
Mounting information
Colours
Laundry basket, order no. 49302.0
Feet (2 pieces), aluminium, height X / order no.
for combination with vanity units
Base for Laufen Pro S: 283 mm / 40299.1,
293 mm / 40299.2
Base for Val: 263 mm / 40299.0
Installation set for furniture, order no. 49302.1
The walls installed on must meet the require-
ments of the furniture in terms of weight and
the supplied fastening elements. If this cannot
be guaranteed another method of installation
needs to be chosen. For example with feet.
260 – White matt
261 – White glossy
262 – Light elm
263 – Dark brown elm
M01 – Oyster white
M36 – Traffic grey
999 – 39 other lacquered colours on request
40271.1
Weight
TECHNICAL DRAWINGS / S 1 : 20
33 36 212 36 33
350
X = The exact hight must be set during installation.
Z 200207
X
1
6
5
0
1
5
5
3
1
6
8
1
3
3
6
