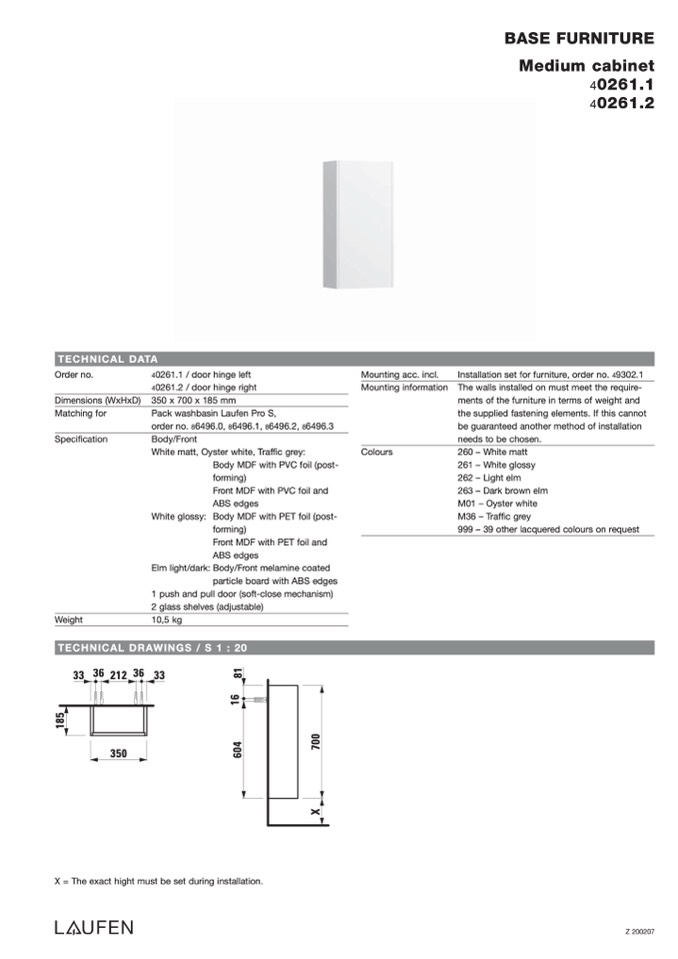

40261.1
40261.2
TECHNICAL DATA
Order no.
Dimensions (WxHxD)
Matching for
Specification
4
0261.1 / door hinge left
4
0261.2 / door hinge right
350 x 700 x 185 mm
Pack washbasin Laufen Pro S,
order no. 86496.0, 86496.1, 86496.2, 86496.3
Body/Front
White matt, Oyster white, Traffic grey:
Body MDF with PVC foil (post-
forming)
Front MDF with PVC foil and
ABS edges
White glossy: Body MDF with PET foil (post-
forming)
Front MDF with PET foil and
ABS edges
Elm light/dark: Body/Front melamine coated
particle board with ABS edges
1 push and pull door (soft-close mechanism)
2 glass shelves (adjustable)
10,5 kg
Mounting acc. incl.
Mounting information
Colours
Installation set for furniture, order no. 49302.1
The walls installed on must meet the require-
ments of the furniture in terms of weight and
the supplied fastening elements. If this cannot
be guaranteed another method of installation
needs to be chosen.
260 – White matt
261 – White glossy
262 – Light elm
263 – Dark brown elm
M01 – Oyster white
M36 – Traffic grey
999 – 39 other lacquered colours on request
Weight
TECHNICAL DRAWINGS / S 1 : 20
33 36 212 36 33
350
X = The exact hight must be set during installation.
Z 200207
X
7
0
0
6
0
4
1
6
8
1
1
8
5
