Order no.
Certified to
Dimensions (WxHxD)
Specification
Weight
Mounting acc. incl.
4
0280.2 / 1 power socket (EU)
4
0281.2 / 1 power socket (CH)
4
0282.2 / 1 power socket (UK)
IP44
800 x 700 x 185 mm
Body – inside melamine white
White matt, Oyster white, Traffic grey:
MDF with PVC foil (postforming)
White glossy: MDF with PET foil (postforming)
Elm light/dark: Melamine coated particle board
with ABS edges (stepforming)
Door – Glass 3+3 mm
2 doors with inside and outside mirrors
With horizontal LED light element
1x 7W/m, 4000 Kelvin (daylight), IP44, 230V
2 glass shelves (adjustable)
22,0 kg
Installation set, order no. 49302.1
Mounting information
Colours
The fortification walls must meet the require-
ments of the furniture in terms of weight
and the supplied fasteners. This can not be
guaranteed, another method of attachment
is chosen.
230V power supply required.
260 – White matt
261 – White glossy
262 – Light elm
263 – Dark brown elm
M01 – Oyster white
M36 – Traffic grey
999 – 39 other lacquered colours on request
40280.2
40281.2
40282.2

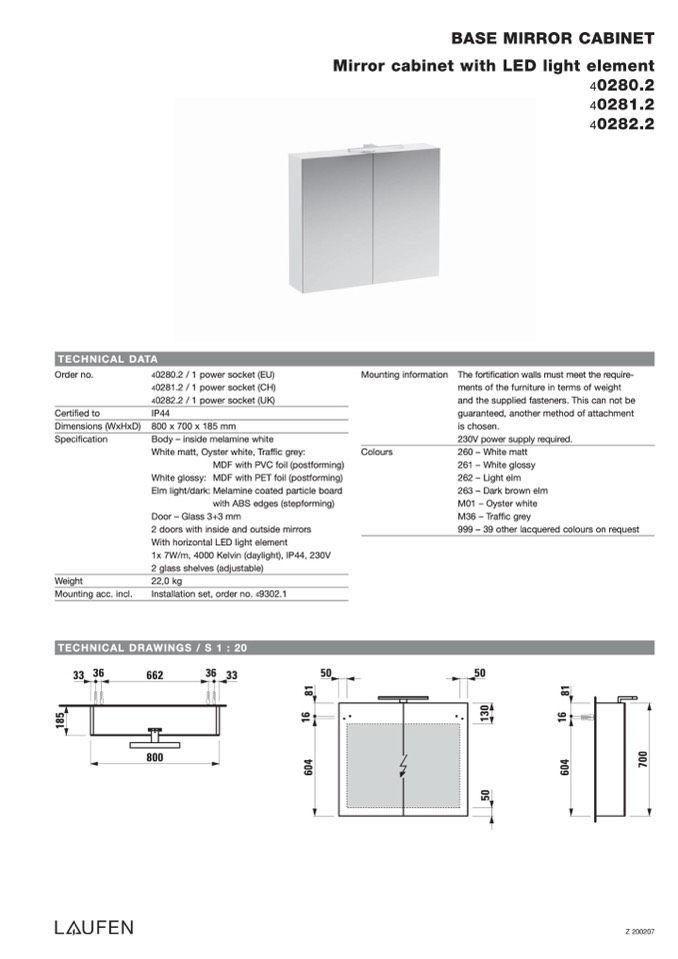

TECHNICAL DATA
TECHNICAL DRAWINGS / S 1 : 20
33 36
662
36 33
50
50
800
Z 200207
6
0
4
1
6
8
1
5
0
1
3
0
6
0
4
1
6
8
1
7
0
0
1
8
5
