Order no.

Certified to

Dimensions (WxHxD)

Specification

Weight

4

0290.2 / 1 power socket (EU)

4

0291.2 / 1 power socket (CH)

4

0292.2 / 1 power socket (UK)

IP44

1200 x 700 x 185 mm

Body – inside melamine white

White matt, Oyster white, Traffic grey:

MDF with PVC foil (postforming)

White glossy: MDF with PET foil (postforming)

Elm light/dark: Melamine coated particle board

with ABS edges (stepforming)

Door – Glass 3+3 mm

2 doors with inside and outside mirrors

With horizontal LED light element

1x 7W/m, 4000 Kelvin (daylight), IP44, 230V

2 glass shelves (adjustable)

32,0 kg

Mounting acc. incl.

Mounting information

Colours

Installation set, order no. 49302.1

The fortification walls must meet the require-

ments of the furniture in terms of weight

and the supplied fasteners. This can not be

guaranteed, another method of attachment

is chosen.

230V power supply required.

260 – White matt

261 – White glossy

262 – Light elm

263 – Dark brown elm

M01 – Oyster white

M36 – Traffic grey

999 – 39 other lacquered colours on request

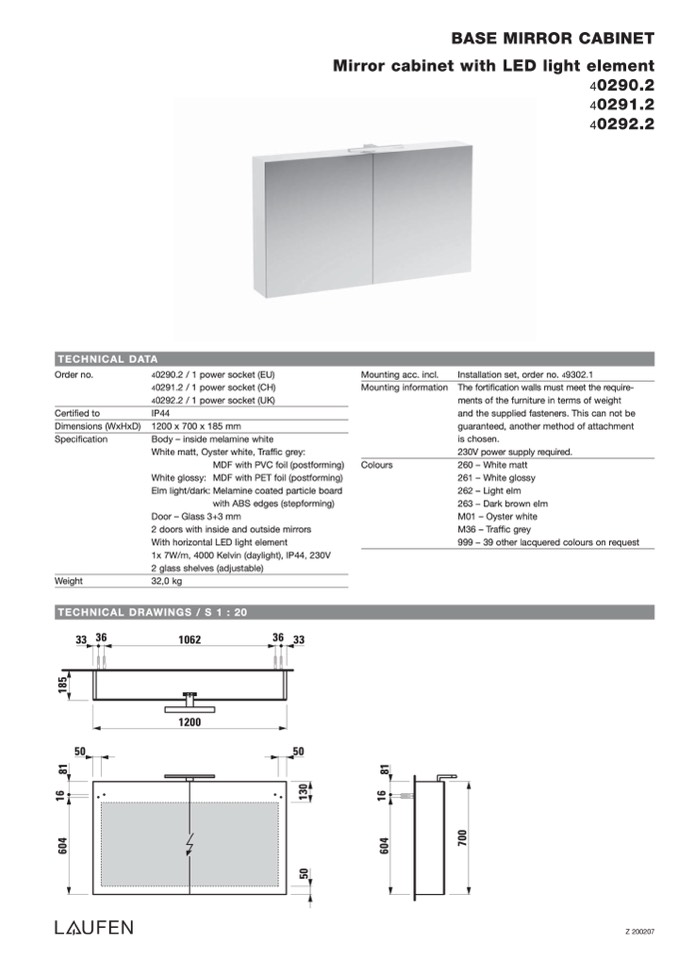

BASE MIRROR CABINET

Mirror cabinet with LED light element

40290.2

40291.2

40292.2

TECHNICAL DATA

TECHNICAL DRAWINGS / S 1 : 20

33 36

1062

50

36 33

50

1200

Z 200207
