TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for washbasin

Specification

Weight

Accessories excl.

4

0901.0 / without cut out

4

0901.3 / 1 cut out

900 x 430 x 500 mm

see table below

Body/Front – lacquered surface veneer with

solid wood edges

Slim front with a 4 mm rim

1 push and pull full extension drawer

without or with cut out

30,5 kg

Base, height 40 mm, order no. 40923.0

Shelf L shaped for drawer, with pre-drilled holes in

the back (left and right) for optional power socket,

depth 90 mm, order no. 40924.1

depth 150 mm, order no. 40924.2

Accessories excl.

Mounting acc. incl.

Mounting information

Power socket (EU), IP44, order no. 49298.4

Power socket (CH), IP44, order no. 49298.5

Drawer separations (not recommended with shelf)

small, order no. 40920.0

Space saving siphon, order no. 89424.0

Installation set for furniture, order no. 49120.6

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

250 – Light oak

251 – Dark oak

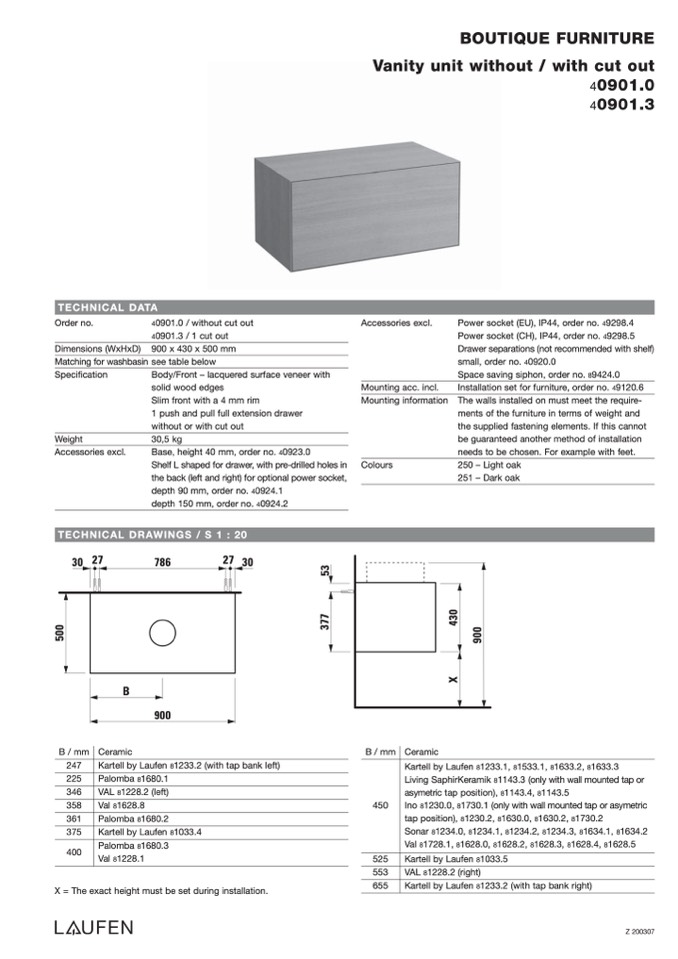

BOUTIQUE FURNITURE

Vanity unit without / with cut out

40901.0

40901.3

Colours

TECHNICAL DRAWINGS / S 1 : 20

30 27

786

27 30

B

900

B / mm

247

225

346

358

361

375

400

X = The exact height must be set during installation.

Ceramic

Kartell by Laufen 81233.2 (with tap bank left)

Palomba 81680.1

VAL 81228.2 (left)

Val 81628.8

Palomba 81680.2

Kartell by Laufen 81033.4

Palomba 81680.3

Val 81228.1

B / mm

450

525

553

655

Ceramic

Kartell by Laufen 81233.1, 81533.1, 81633.2, 81633.3

Living SaphirKeramik 81143.3 (only with wall mounted tap or

asymetric tap position), 81143.4, 81143.5

Ino 81230.0, 81730.1 (only with wall mounted tap or asymetric

tap position), 81230.2, 81630.0, 81630.2, 81730.2

Sonar 81234.0, 81234.1, 81234.2, 81234.3, 81634.1, 81634.2

Val 81728.1, 81628.0, 81628.2, 81628.3, 81628.4, 81628.5

Kartell by Laufen 81033.5

VAL 81228.2 (right)

Kartell by Laufen 81233.2 (with tap bank right)

Z 200307
