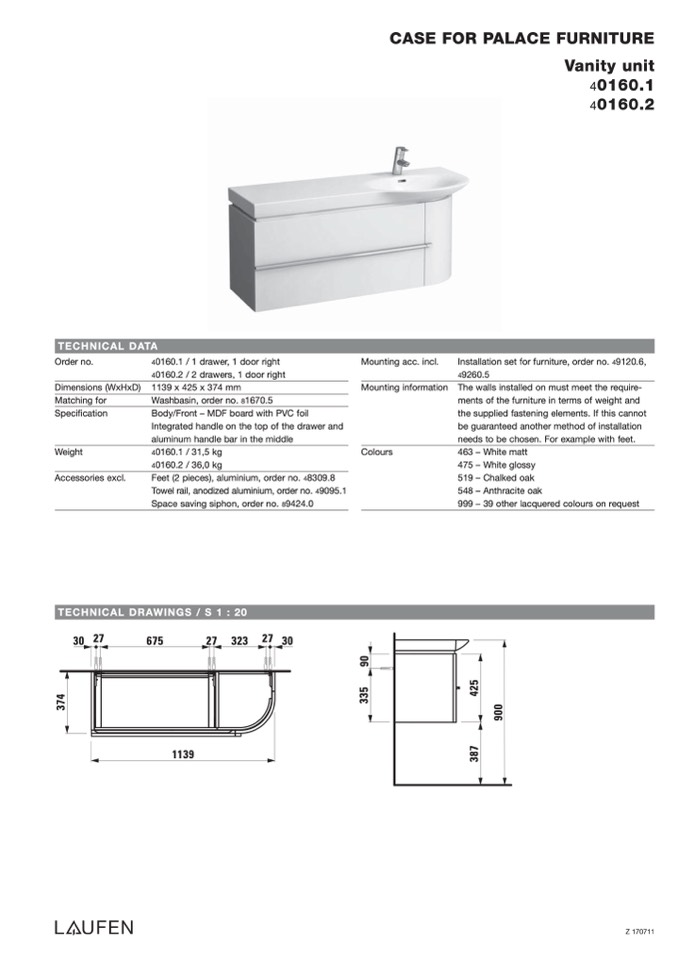

TECHNICAL DATA
Order no.
Dimensions (WxHxD)
Matching for
Specification
Weight
Accessories excl.
4
0160.1 / 1 drawer, 1 door right
4
0160.2 / 2 drawers, 1 door right
1139 x 425 x 374 mm
Washbasin, order no. 81670.5
Body/Front – MDF board with PVC foil
Integrated handle on the top of the drawer and
aluminum handle bar in the middle
4
0160.1 / 31,5 kg
4
0160.2 / 36,0 kg
Feet (2 pieces), aluminium, order no. 48309.8
Towel rail, anodized aluminium, order no. 49095.1
Space saving siphon, order no. 89424.0
Mounting acc. incl.
Mounting information
Colours
Installation set for furniture, order no. 49120.6,
4
9260.5
The walls installed on must meet the require-
ments of the furniture in terms of weight and
the supplied fastening elements. If this cannot
be guaranteed another method of installation
needs to be chosen. For example with feet.
463 – White matt
475 – White glossy
519 – Chalked oak
548 – Anthracite oak
999 – 39 other lacquered colours on request
40160.1
40160.2
TECHNICAL DRAWINGS / S 1 : 20
3
0
27
675
27
323
2
7
30
1139
Z 170711
3
8
7
4
2
5
9
0
0
3
7
4
3
3
5
9
0
