TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Specification

Weight

Accessories excl.

4

0201.1 / door hinge left

4

0201.2 / door hinge right

350 x 1000 x 335 mm

Body/Front – MDF board with PVC foil

Aluminum handle bar on the front

1 door

2 glass shelves

25,0 kg

Feet (2 pieces), aluminium, height X / order no.

for combination with vanity units

Case for Palace: 335 mm / 48309.4,

370 mm / 48309.5, 385 mm / 48309.6,

387 mm / 48309.8

Case for Living Sqaure: 410 mm / 48309.7

Case for Living City: 257 mm / 48309.9

Mounting acc. incl.

Mounting information

Colours

Installation set, order no. 49664.0, 49401.2

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

463 – White matt

475 – White glossy

519 – Chalked oak

548 – Anthracite oak

999 – 39 other lacquered colours on request

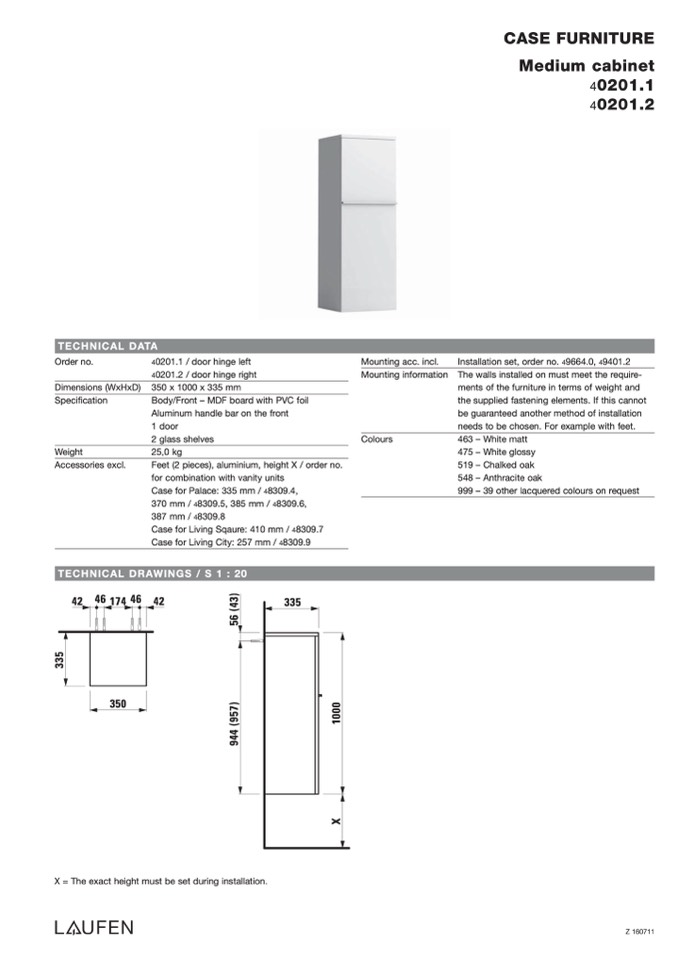

CASE FURNITURE

Medium cabinet

40201.1

40201.2

TECHNICAL DRAWINGS / S 1 : 20

42 46 174 46

42

335

350

X = The exact height must be set during installation.

Z 160711

X

1

0

0

0

9

4

4

(

9

5

7

)

5

6

(

4

3

)

3

3

5
