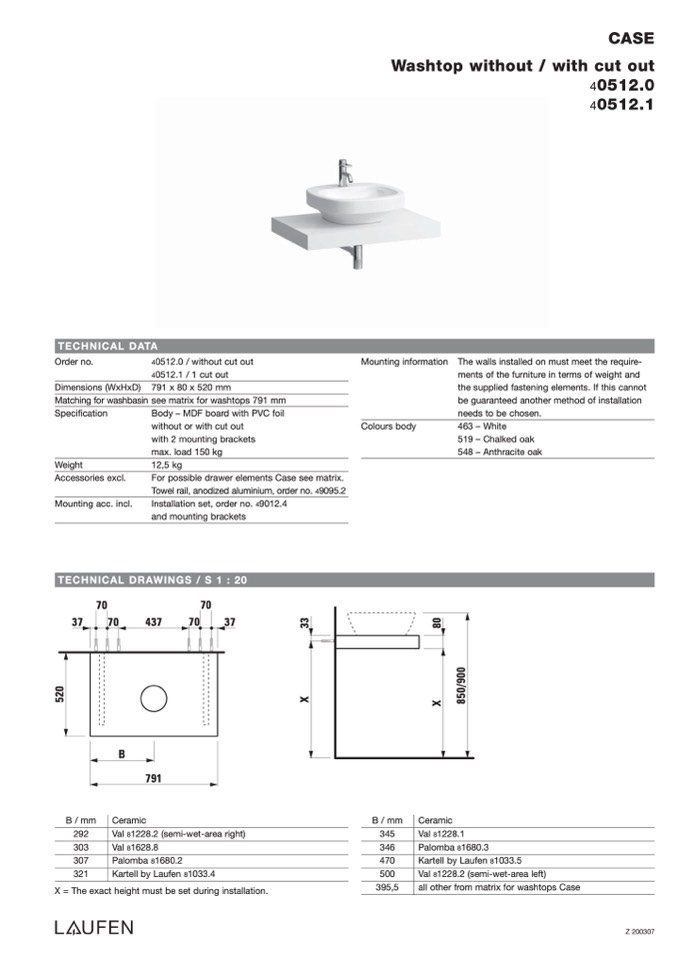

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for washbasin

Specification

Weight

Accessories excl.

Mounting acc. incl.

4

0512.0 / without cut out

4

0512.1 / 1 cut out

791 x 80 x 520 mm

see matrix for washtops 791 mm

Body – MDF board with PVC foil

without or with cut out

with 2 mounting brackets

max. load 150 kg

12,5 kg

For possible drawer elements Case see matrix.

Towel rail, anodized aluminium, order no. 49095.2

Installation set, order no. 49012.4

and mounting brackets

Mounting information

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

463 – White

519 – Chalked oak

548 – Anthracite oak

CASE

Washtop without / with cut out

40512.0

40512.1

Colours body

TECHNICAL DRAWINGS / S 1 : 20

70

70

37

70

437

70

37

B

791

B / mm

292

303

307

321

Ceramic

Val 81228.2 (semi-wet-area right)

Val 81628.8

Palomba 81680.2

Kartell by Laufen 81033.4

B / mm

345

346

470

500

395,5

Ceramic

Val 81228.1

Palomba 81680.3

Kartell by Laufen 81033.5

Val 81228.2 (semi-wet-area left)

all other from matrix for washtops Case

X = The exact height must be set during installation.

Z 200307

5

2

0

X

3

3

X

8

0

8

5

0

/

9

0

0
