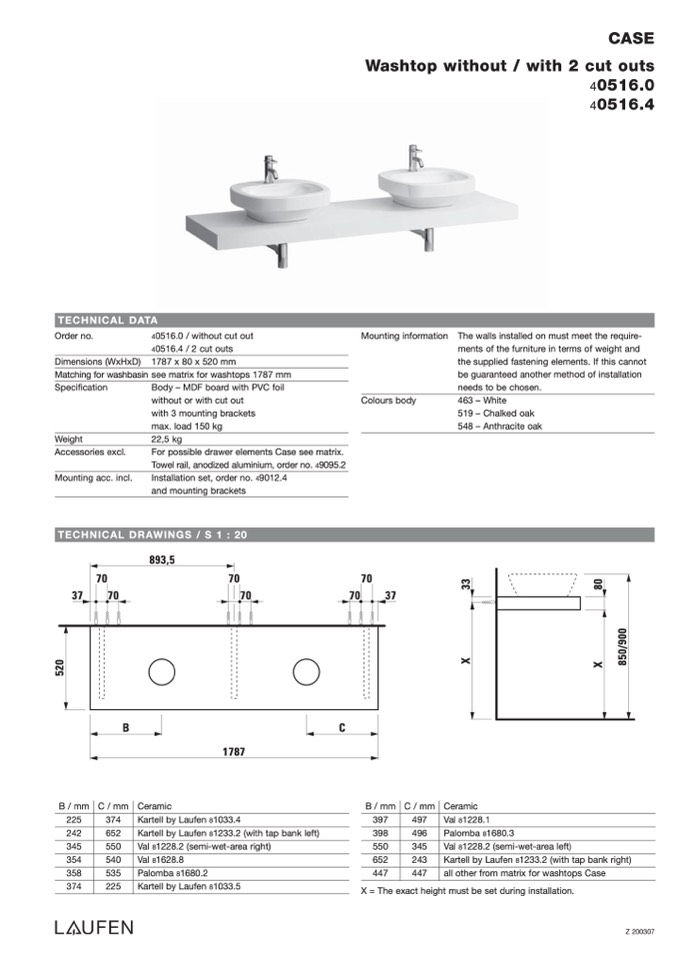

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for washbasin

Specification

Weight

Accessories excl.

Mounting acc. incl.

4

0516.0 / without cut out

4

0516.4 / 2 cut outs

1787 x 80 x 520 mm

see matrix for washtops 1787 mm

Body – MDF board with PVC foil

without or with cut out

with 3 mounting brackets

max. load 150 kg

22,5 kg

For possible drawer elements Case see matrix.

Towel rail, anodized aluminium, order no. 49095.2

Installation set, order no. 49012.4

and mounting brackets

Mounting information

Colours body

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

463 – White

519 – Chalked oak

548 – Anthracite oak

CASE

Washtop without / with 2 cut outs

40516.0

40516.4

TECHNICAL DRAWINGS / S 1 : 20

893,5

70

70

70

37

70

70

70

37

B

C

1787

B / mm

225

242

345

354

358

374

C / mm

Ceramic

Kartell by Laufen 81033.4

Kartell by Laufen 81233.2 (with tap bank left)

Val 81228.2 (semi-wet-area right)

Val 81628.8

Palomba 81680.2

Kartell by Laufen 81033.5

B / mm

397

398

550

652

447

C / mm

Ceramic

Val 81228.1

Palomba 81680.3

Val 81228.2 (semi-wet-area left)

Kartell by Laufen 81233.2 (with tap bank right)

all other from matrix for washtops Case

374

652

550

540

535

225

497

496

345

243

447

X = The exact height must be set during installation.
