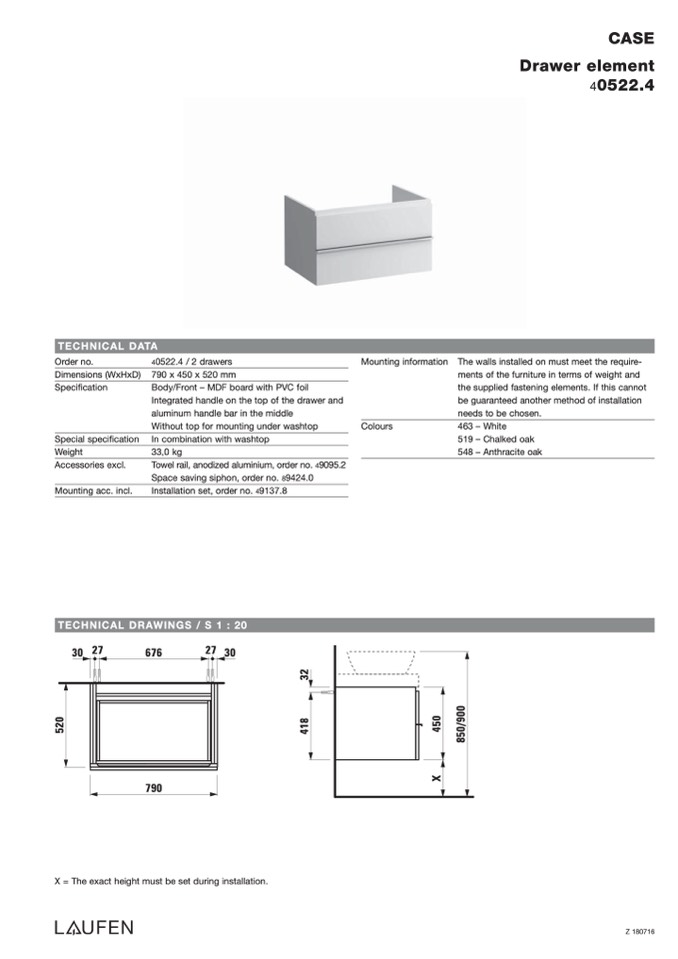

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Specification

Special specification

Weight

Accessories excl.

Mounting acc. incl.

4

0522.4 / 2 drawers

790 x 450 x 520 mm

Body/Front – MDF board with PVC foil

Integrated handle on the top of the drawer and

aluminum handle bar in the middle

Without top for mounting under washtop

In combination with washtop

33,0 kg

Towel rail, anodized aluminium, order no. 49095.2

Space saving siphon, order no. 89424.0

Installation set, order no. 49137.8

Mounting information

Colours

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

463 – White

519 – Chalked oak

548 – Anthracite oak

CASE

Drawer element

40522.4

TECHNICAL DRAWINGS / S 1 : 20

30 27

676

27 30

790

X = The exact height must be set during installation.

Z 180716

X

4

5

0

8

5

0

/

9

0

0

5

2

0

4

1

8

3

2
