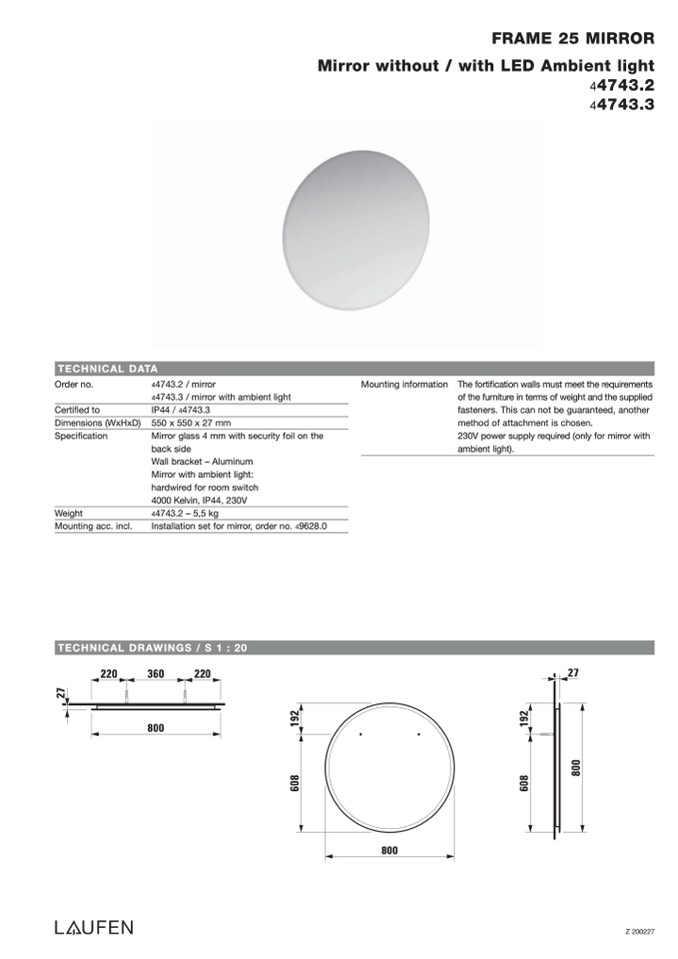

44743.2
44743.3
TECHNICAL DATA
Order no.
Certified to
Dimensions (WxHxD)
Specification
Weight
Mounting acc. incl.
4
4743.2 / mirror
4
4743.3 / mirror with ambient light
IP44 / 44743.3
550 x 550 x 27 mm
Mirror glass 4 mm with security foil on the
back side
Wall bracket – Aluminum
Mirror with ambient light:
hardwired for room switch
4000 Kelvin, IP44, 230V
4
4743.2 – 5,5 kg
Installation set for mirror, order no. 49628.0
Mounting information
The fortification walls must meet the requirements
of the furniture in terms of weight and the supplied
fasteners. This can not be guaranteed, another
method of attachment is chosen.
230V power supply required (only for mirror with
ambient light).
TECHNICAL DRAWINGS / S 1 : 20
220
360
220
27
800
800
Z 200227
6
0
8
1
9
2
6
0
8
1
9
2
8
0
0
2
7
