Order no.

Certified to

matching for

Specification

Water inlet

Weight

Mounting acc. incl.

Colours

8

2885.1

EN 14055

Floorstanding WC pan

order no. 82485.8 / Charge 000

Flushing mechanism Dual-Flush

With water condensation insulation:

Charge 871 – 5/3-l (6/3-l-flush, 4,5/3-l-flush)

rear, 1/2” brass

10,0 kg

Fastening kit

Angle valve for rear water inlet

Water inlet hose

see colour table

SPECIFICATION TEXT

Cistern Laufen-THE NEW CLASSIC, sanitary ceramic

EN 14055, dimensions 375 x 160 x 395 mm

Dual-Flush 5/3-l (6/3-l-flush, 4,5/3-l-flush)

water inlet rear, 1/2” brass

matching floorstanding WC pan, order no. 82485.8 /option 000

Special feature: with water condensation insulation

Order no. 82885.1

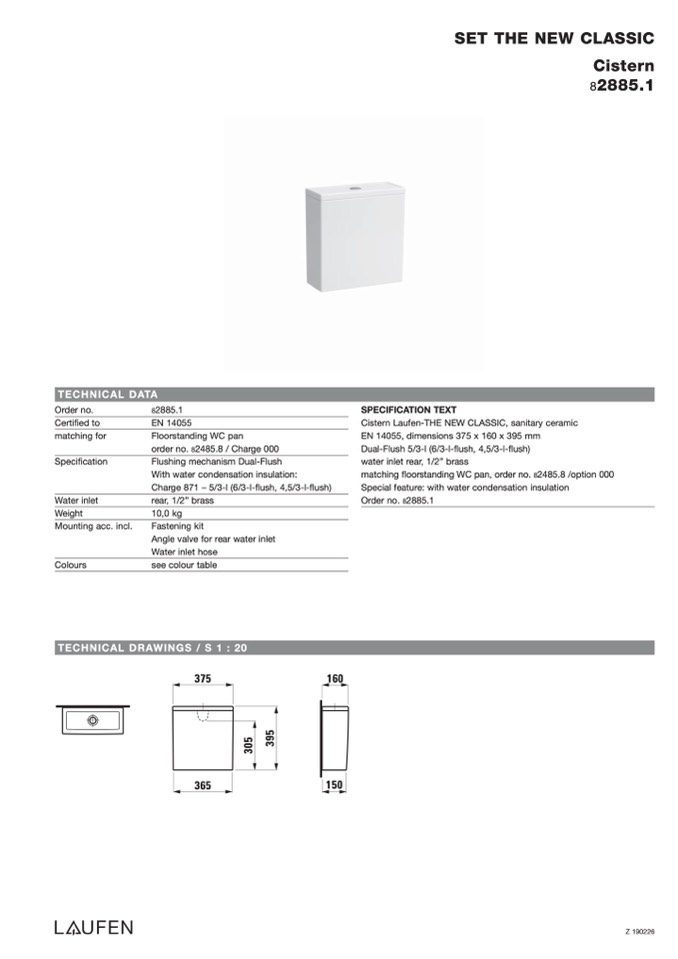

SET THE NEW CLASSIC

Cistern

82885.1

TECHNICAL DATA

TECHNICAL DRAWINGS / S 1 : 20

375

160

365

150

Z 190226

3

0

5

3

9

5
