TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Specification

Weight

Accessoires excl.

4

4741.0

1800 x 700 x 23 mm (+4 mm gap to wall)

Mirror glass 4 mm with security foil on the

back side, integrated in aluminum frame

16,5 kg

Light element, anodized aluminum, (only in

connection with frame colour option 144),

fixation with integrated non hinge system

horizontal:

without switch, order no. 44755.1

with sensor switch integrated in the mirror

frame (bottom side), order no. 44755.2

vertical:

without switch, order no. 44757.1

with sensor switch integrated in the mirror

frame (bottom side), order no. 44757.2

Accessoires excl.

Mounting acc. incl.

Mounting information

Colours frame

40

67

Light element horizontal, black matt (only in

connection with frame colour option 450),

fixation directly on the mirror frame

hardwired for room switch, order no. 44756.3,

4

4756.4, 44756.5

Installation set for mirror, order no. 49831.5

The fortification walls must meet the requirements

of the furniture in terms of weight and the supplied

fasteners. This can not be guaranteed, another

method of attachment is chosen.

230V power supply required (only for mirror with

light element).

144 – Anodised aluminum

450 – Black matt

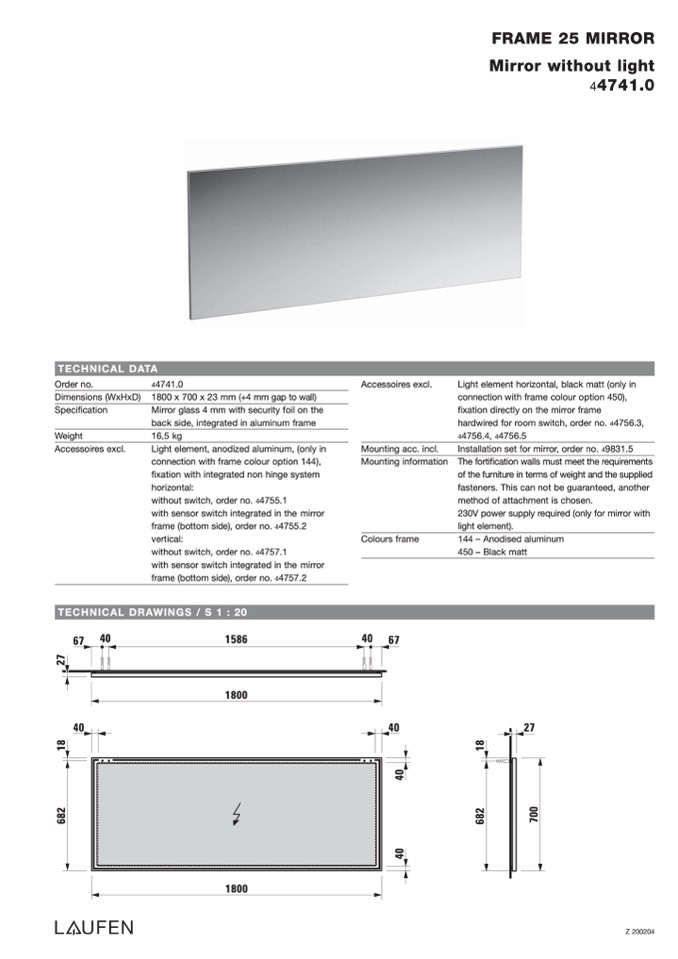

FRAME 25 MIRROR

Mirror without light

44741.0

TECHNICAL DRAWINGS / S 1 : 20

67

40

1586

1800

40

4

0

27

1800

Z 200204
