TECHNICAL DATA

Order no.

Certified to

Dimensions (WxHxD)

matching for

Specification

4

4750.1, 44751.1 / without switch

4

4750.2, 44751.2 / with sensor switch

IP44

900 x 25 x 25 mm / 44750.1, 44750.2

1000 x 25 x 25 mm / 44751.1, 44751.2

mirror 44740.5, 44740.6

only in connection with frame colour option 144

LED light element – Anodized aluminum

Fixation with integrated non hinge system

without switch

1x 15W, 4000 Kelvin (daylight), IP44, 230V

with sensor switch integrated in the mirror

aluminum frame (bottom side)

1x 15W, 4000 Kelvin (daylight), IP44, 230V

Weight

Mounting information

Colour

4

4750.1, 44750.2 – 2,0 kg

4

4751.1, 44751.2 – 2,0 kg

230V power supply required

007 – Anodised aluminum

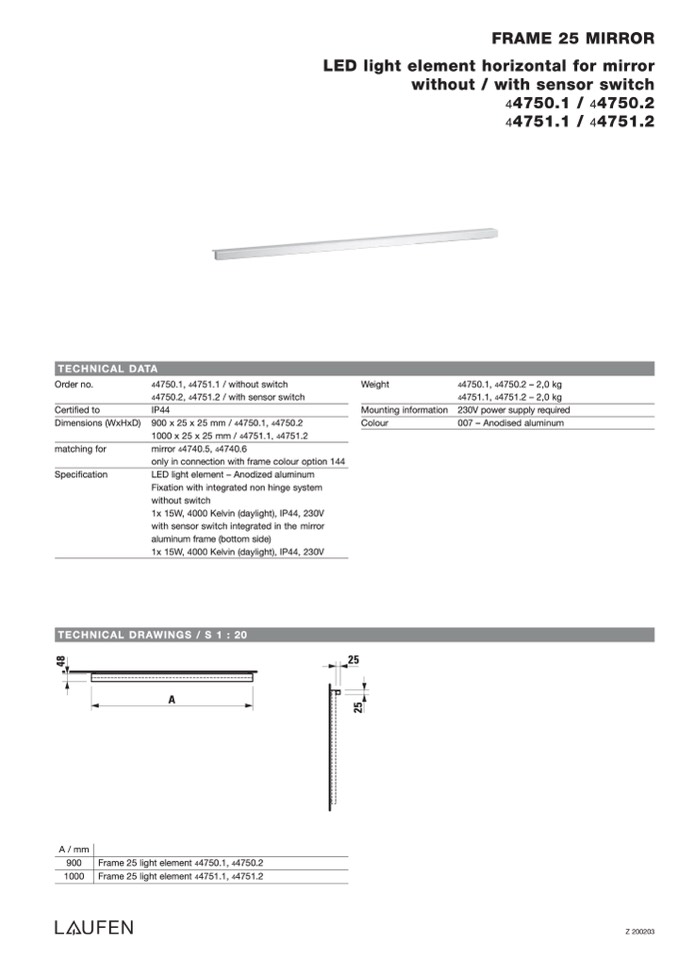

FRAME 25 MIRROR

LED light element horizontal for mirror

without / with sensor switch

44750.1 / 44750.2

44751.1 / 44751.2

TECHNICAL DRAWINGS / S 1 : 20

A

A / mm

900

Frame 25 light element 44750.1, 44750.2

25

1000

Frame 25 light element 44751.1, 44751.2

Z 200203

2

5

4

8
