TECHNICAL DATA

Order no.

Certified to

Dimensions (WxHxD)

matching for

Specification

4

4754.1, 44755.1 / without switch

4

4754.2, 44755.2 / with sensor switch

IP44

1500 x 25 x 25 mm / 44754.1, 44754.2

1500 x 25 x 25 mm / 44755.1, 44755.2

mirror 44740.9, 44741.0

only in connection with frame colour option 144

LED light element – Anodized aluminum

Fixation with integrated non hinge system

without switch

1x 30W, 4000 Kelvin (daylight), IP44, 230V

with sensor switch integrated in the mirror

aluminum frame (bottom side)

1x 30W, 4000 Kelvin (daylight), IP44, 230V

Weight

Mounting information

Colour

4

4754.1, 44754.2 – 3,5 kg

4

4755.1, 44755.2 – 4,0 kg

230V power supply required

007 – Anodised aluminum

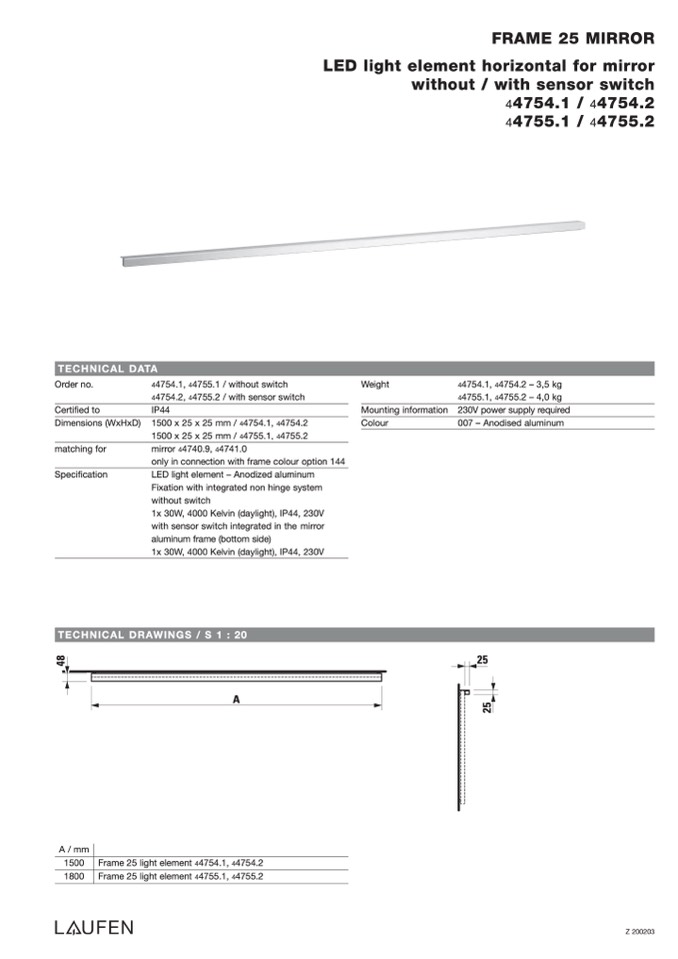

FRAME 25 MIRROR

LED light element horizontal for mirror

without / with sensor switch

44754.1 / 44754.2

44755.1 / 44755.2

TECHNICAL DRAWINGS / S 1 : 20

A

A / mm

1500

Frame 25 light element 44754.1, 44754.2

1800

Frame 25 light element 44755.1, 44755.2

25

Z 200203

2

5

4

8
