TECHNICAL DATA

Order no.

Dimensions (WxHxD)

matching for

Specification

Weight

Mounting acc. incl.

4

4758.6, 44758.7, 44758.8, 44758.9

1000 x 120 x 45/10 mm / 44758.6

1200 x 120 x 45/10 mm / 44758.7

1300 x 120 x 45/10 mm / 44758.8

1500 x 120 x 45/10 mm / 44758.9

1800 x 120 x 45/10 mm / 44759.0

mirror 44740.6, 44740.7, 44740.8, 44740.9,

4

4741.0

Shelf – Security glass 10 mm

Wall fixation – Anluminum

max. load 18,0 kg

4

4758.6 – 5,1 kg

4

4758.7 – 5,7 kg

4

4758.8 – 6,1 kg

4

4758.9 – 6,9 kg

4

4759.0 – 7,6 kg

3 wall fixations, order no. 49059.8

Mounting acc. excl.

Colour

Set of mirror fixation adapter for glass shelf

(3 pieces), order no. 49071.8 (only suitable for

Frame 25 without or with horizontal light)

000 – Glass with fixation set chrome

450 – Glass with fixation set black matt

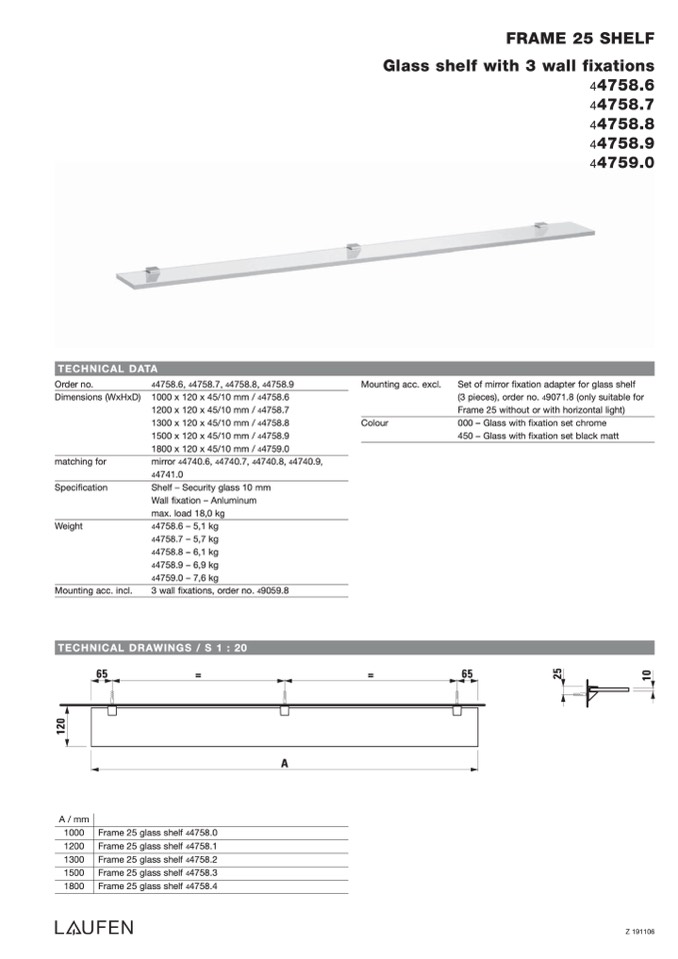

FRAME 25 SHELF

Glass shelf with 3 wall fixations

44758.6

44758.7

44758.8

44758.9

44759.0

TECHNICAL DRAWINGS / S 1 : 20

65

=

=

65

A / mm

1000

Frame 25 glass shelf 44758.0

1200

Frame 25 glass shelf 44758.1

1300

Frame 25 glass shelf 44758.2

1500

Frame 25 glass shelf 44758.3

1800

Frame 25 glass shelf 44758.4

A

Z 191106
