TECHNICAL DATA

Order no.

4

0830.1 /

4

0831.1 /

4

0832.1 /

4

0835.1 /

4

0836.1 /

4

0837.1 /

4

0830.2 /

4

0831.2 /

4

0832.2 /

4

0835.2 /

4

0836.2 /

4

0837.2 /

IP44

door hinge left, with sensor switch,

2 sockets (EU)

door hinge left, hardwired for room

switch, 2 sockets (CH)

door hinge left, hardwired for room

switch

door hinge left, bottom ambient light,

with sensor switch, 2 sockets (EU)

door hinge left, hardwired for room

switch, bottom ambient light with

sensor switch, 2 sockets (CH)

door hinge left, hardwired for room

switch, bottom ambient light with

sensor switch, without sockets

door hinge right, with sensor switch,

2 sockets (EU)

door hinge right, hardwired for room

switch, 2 sockets (CH)

door hinge right, hardwired for room

switch

door hinge right, bottom ambient light,

with sensor switch, 2 sockets (EU)

door hinge right, hardwired for room

switch, bottom ambient light with

sensor switch, 2 sockets (CH)

door hinge right, hardwired for room

switch, bottom ambient light with

sensor switch, without sockets

Dimensions (WxHxD)

Specification

Weight

Accessories excl.

Mounting acc. incl.

Mounting acc. excl.

Mounting information

Colours side wall

(cover)

30

450 x 750 x 150 mm

Body – Inner part anodized aluminum (sidewall

top, bottom), back wall grey melamine coated MDF

Door – Glass 3+3 mm

1 door with inside and outside mirrors, including

handle (optional usable)

With vertical LED light

2x 14W/m, 4000 Kelvin (daylight), IP44, 230V

3 glass shelves (adjustable)

14,0 kg

Accessories set consisting of 1 organizer,

cosmetic mirror and magnetic bar self adhesive,

order no. 49060.0

Installation set, order no. 49063.0

Installation frame set for mirror cabinet 450 mm,

aluminum, dimensions 480 x 780 x 30 mm,

order no. 40838.0 (only 40831.1, 40832.1,

4

0831.2, 40832.2 in connection with colour

option 144)

The fortification walls must meet the requirements

of the furniture in terms of weight and the

supplied fasteners. This can not be guaranteed,

another method of attachment is chosen.

230V power supply required.

Attention: Clearance for sensor switch

min. 15 cm below mirror cabinet!

144 – Mirror, 145 – Glass with white backing

150

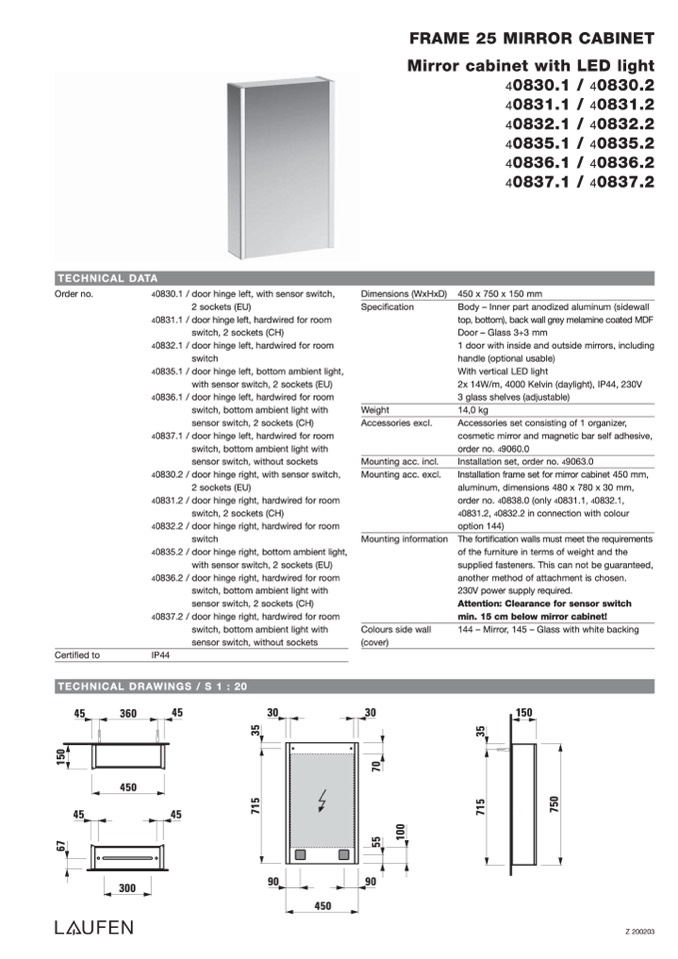

FRAME 25 MIRROR CABINET

Mirror cabinet with LED light

40830.1 / 40830.2

40831.1 / 40831.2

40832.1 / 40832.2

40835.1 / 40835.2

40836.1 / 40836.2

40837.1 / 40837.2

Certified to

TECHNICAL DRAWINGS / S 1 : 20

45

360

45

30

45

45

450

300

90

90

450

Z 200203

6

7

1

5

0

5

5

1

0

0

7

0

7

1

5

3

5

7

1

5

3

5

7

5

0
