TECHNICAL DATA

Order no.

4

0870.4 /

4

0871.4 /

4

0872.4 /

4

0875.4 /

4

0876.4 /

4

0877.4 /

with sensor switch, 2 sockets (EU)

hardwired for room switch,

2 sockets (CH)

hardwired for room switch, without

sockets

bottom ambient light, with sensor

switch, 2 sockets (EU)

hardwired for room switch, bottom

ambient light with sensor switch,

2 sockets (CH)

hardwired for room switch, bottom

ambient light with sensor switch,

without sockets

Weight

Accessories excl.

Mounting acc. incl.

Mounting acc. excl.

Mounting information

Colours side wall

(cover)

33,0 kg

Accessories set consisting of 1 organizer,

cosmetic mirror and magnetic bar self adhesive,

order no. 49060.0

Installation set, order no. 49063.2

Installation frame set for mirror cabinet 1300 mm,

aluminum, dimensions 1330 x 780 x 30 mm,

order no. 40878.0 (only 40871.4, 40872.4 in

connection with colour option 144)

The fortification walls must meet the requirements

of the furniture in terms of weight and the

supplied fasteners. This can not be guaranteed,

another method of attachment is chosen.

230V power supply required.

Attention: Clearance for sensor switch

min. 15 cm below mirror cabinet!

144 – Mirror, 145 – Glass with white backing

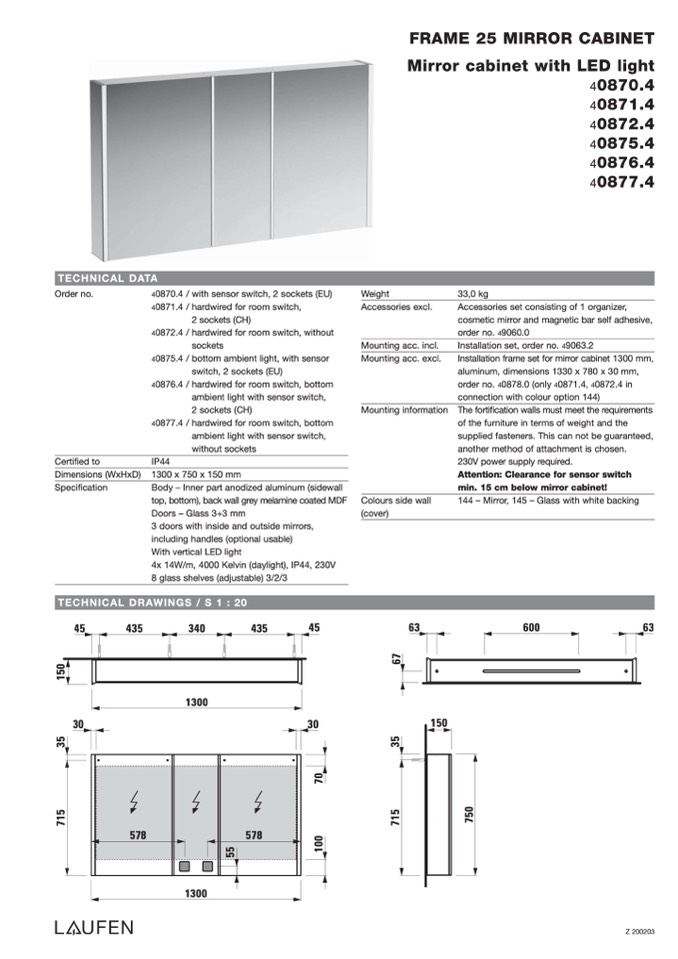

FRAME 25 MIRROR CABINET

Mirror cabinet with LED light

40870.4

40871.4

40872.4

40875.4

40876.4

40877.4

Certified to

Dimensions (WxHxD)

Specification

IP44

1300 x 750 x 150 mm

Body – Inner part anodized aluminum (sidewall

top, bottom), back wall grey melamine coated MDF

Doors – Glass 3+3 mm

3 doors with inside and outside mirrors,

including handles (optional usable)

With vertical LED light

4x 14W/m, 4000 Kelvin (daylight), IP44, 230V

8 glass shelves (adjustable) 3/2/3

TECHNICAL DRAWINGS / S 1 : 20

4

5

43

5

34

0

43

5

45

63

600

63

1300

30

30

150

578

578

1300

Z 200203
