Order no.
Certified to
Energy label
Dimensions (WxHxD)
Specification
4
4763.1, 44764.1
4
4765.1, 44766.1
IP44
A+
see table and drawing below
hardwired for room switch
Mirror glass 4 mm with security foil, integrated
in aluminum frame electro polished
With integrated horizontal LED lighting
4000 Kelvin, IP44, 230V, 50/60 Hz
Electrical power (W):
4
4763.1 – main light 7,0W
4
4764.1 – main light 10,0W
4
4765.1 – main light 11,0W
4
4766.1 – main light 12,0W
Weight
Mounting acc. incl.
Mounting information
4
4763.1 – 7,1 kg
4
4764.1 – 9,2 kg
4
4765.1 – 10,3 kg
4
4766.1 – 11,3 kg
2 installation sets, order no. 49621.9
1 installation set, order no. 49622.0
The fortification walls must meet the require
ments of the furniture in terms of weight
and the supplied fasteners. This can not be
guaranteed, another method of attachment
is chosen.
230V power supply required.
34
38
44763.1
44764.1
44765.1
44766.1

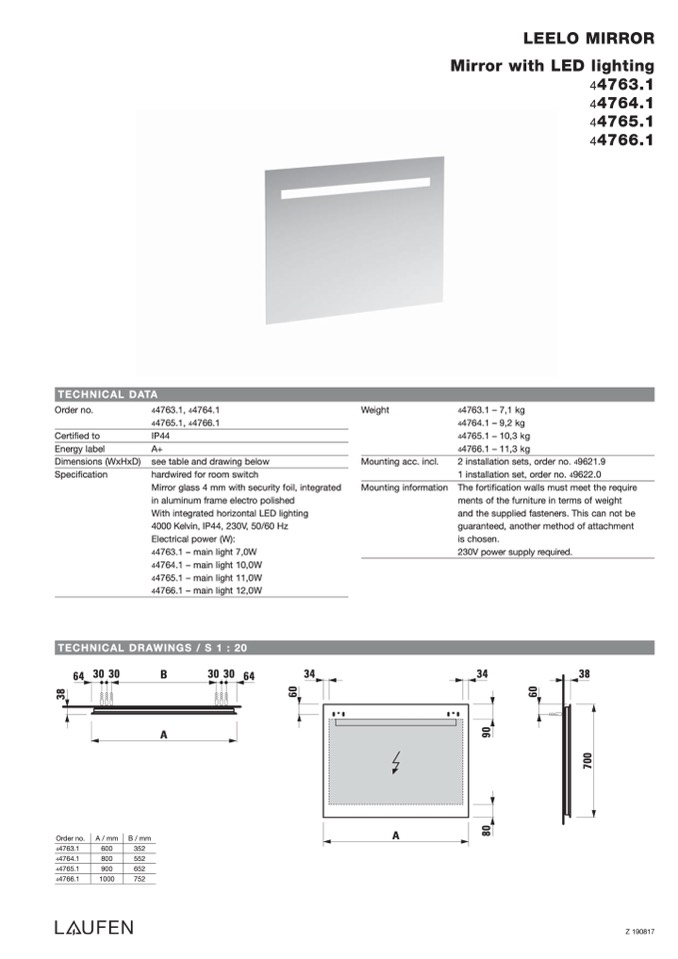

TECHNICAL DATA
TECHNICAL DRAWINGS / S 1 : 20
64 3030
B
3030 64
34
A
A
Order no.
4
4763.1
4
4764.1
4
4765.1
4
4766.1
A / mm
B / mm
352
552
652
752
600
800
900
1000
Z 190817
