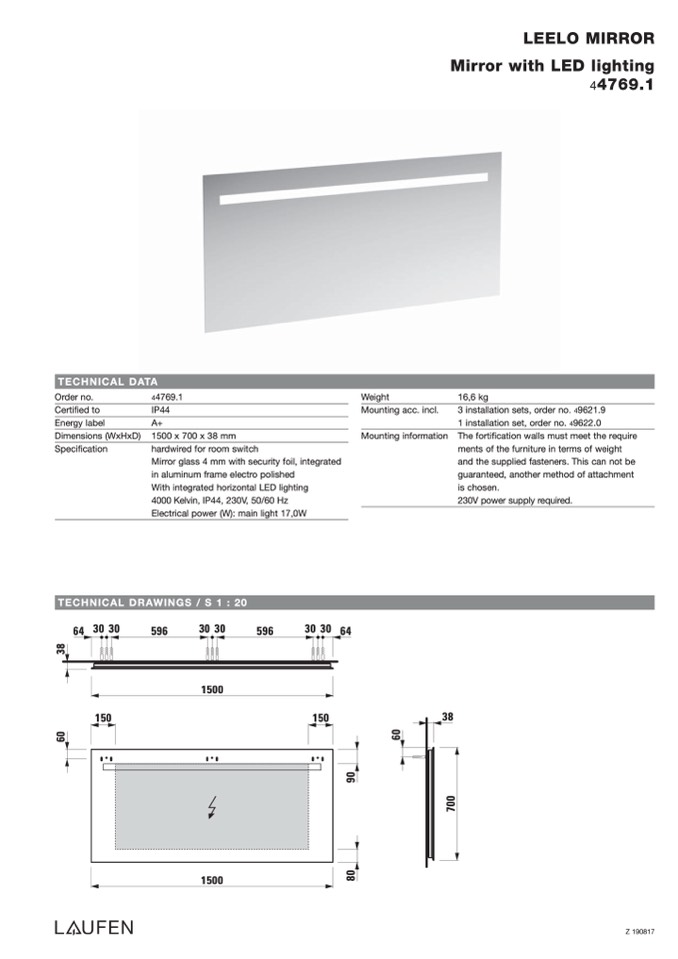

TECHNICAL DATA
Order no.
Certified to
Energy label
Dimensions (WxHxD)
Specification
4
4769.1
IP44
A+
1500 x 700 x 38 mm
hardwired for room switch
Mirror glass 4 mm with security foil, integrated
in aluminum frame electro polished
With integrated horizontal LED lighting
4000 Kelvin, IP44, 230V, 50/60 Hz
Electrical power (W): main light 17,0W
Weight
Mounting acc. incl.
Mounting information
16,6 kg
3 installation sets, order no. 49621.9
1 installation set, order no. 49622.0
The fortification walls must meet the require
ments of the furniture in terms of weight
and the supplied fasteners. This can not be
guaranteed, another method of attachment
is chosen.
230V power supply required.
44769.1
TECHNICAL DRAWINGS / S 1 : 20
64 3030
596
3030
596
3030 64
150
1500
150
38
1500
Z 190817
