TECHNICAL DATA

Order no.

Certified to

Energy label

Dimensions (WxHxD)

Specification

4

4770.3

IP44

A++

1800 x 700 x 32 mm

3 touch sensors (on-off/dimming, colour

temperature change) with memory function,

last light state is remembered

Mirror glass 4 mm with security foil, integrated

in aluminum frame electro polished

With integrated horizontal LED lighting

With peripheral LED ambient lighting

2700-6000 Kelvin (dynamic white, pre-sets 2700,

4000, 6000 Kelvin), main light and ambient light

synchronized, IP44, 230V, 50/60 Hz

Specification

Weight

Mounting acc. incl.

Mounting information

Electrical power (W):

main light 28,1W / ambient light 45,3W

20,7 kg

3 installation sets, order no. 49621.9

1 installation set, order no. 49622.0

The fortification walls must meet the require

ments of the furniture in terms of weight

and the supplied fasteners. This can not be

guaranteed, another method of attachment

is chosen.

230V power supply required.

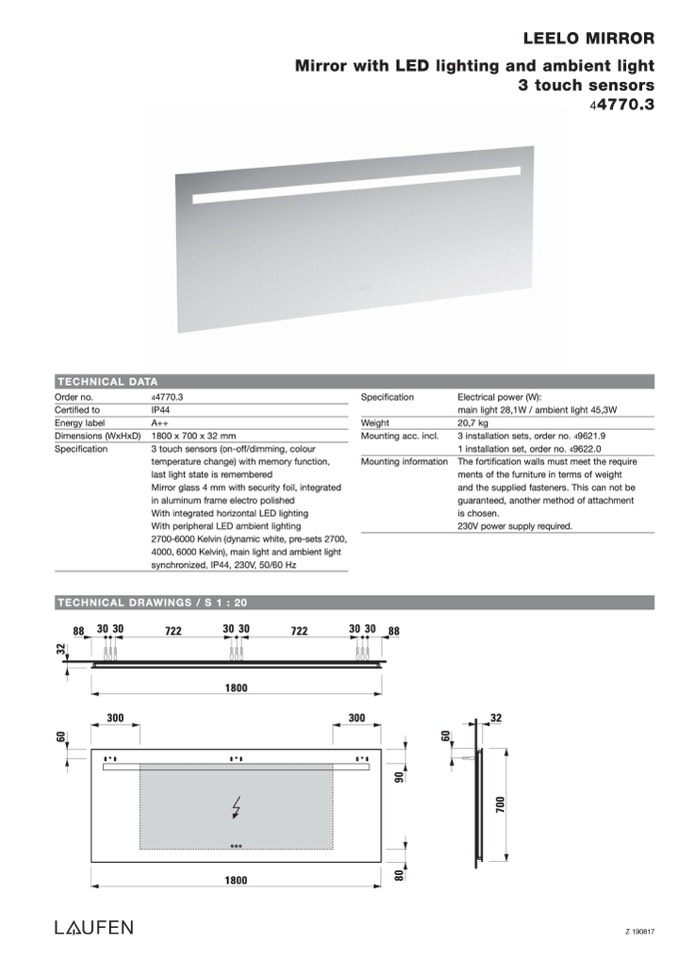

LEELO MIRROR

Mirror with LED lighting and ambient light

3 touch sensors

44770.3

TECHNICAL DRAWINGS / S 1 : 20

88 3030

722

3030

722

3030 88

300

1800

300

32

1800

Z 190817
