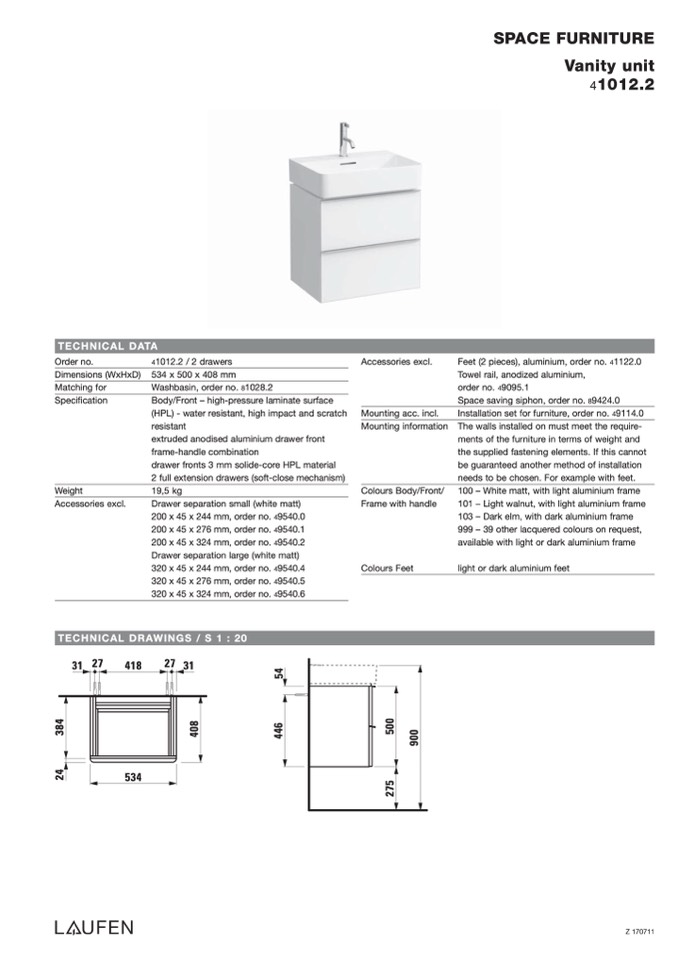

TECHNICAL DATA
Order no.
Dimensions (WxHxD)
Matching for
Specification
Weight
Accessories excl.
4
1012.2 / 2 drawers
534 x 500 x 408 mm
Washbasin, order no. 81028.2
Body/Front – high-pressure laminate surface
(HPL) - water resistant, high impact and scratch
resistant
extruded anodised aluminium drawer front
frame-handle combination
drawer fronts 3 mm solide-core HPL material
2 full extension drawers (soft-close mechanism)
19,5 kg
Drawer separation small (white matt)
200 x 45 x 244 mm, order no. 49540.0
200 x 45 x 276 mm, order no. 49540.1
200 x 45 x 324 mm, order no. 49540.2
Drawer separation large (white matt)
320 x 45 x 244 mm, order no. 49540.4
320 x 45 x 276 mm, order no. 49540.5
320 x 45 x 324 mm, order no. 49540.6
Accessories excl.
Mounting acc. incl.
Mounting information
Colours Body/Front/
Frame with handle
Colours Feet
Feet (2 pieces), aluminium, order no. 41122.0
Towel rail, anodized aluminium,
order no. 49095.1
Space saving siphon, order no. 89424.0
Installation set for furniture, order no. 49114.0
The walls installed on must meet the require-
ments of the furniture in terms of weight and
the supplied fastening elements. If this cannot
be guaranteed another method of installation
needs to be chosen. For example with feet.
100 – White matt, with light aluminium frame
101 – Light walnut, with light aluminium frame
103 – Dark elm, with dark aluminium frame
999 – 39 other lacquered colours on request,
available with light or dark aluminium frame
light or dark aluminium feet
41012.2
TECHNICAL DRAWINGS / S 1 : 20
31 27
418
27 31
534
Z 170711
2
7
5
5
0
0
9
0
0
2
4
3
8
4
4
0
8
4
4
6
5
4
