TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for

Specification

Weight

Accessories excl.

4

1020.2 / 2 drawers

931 x 500 x 408 mm

Washbasin, order no. 81028.7

Body/Front – high-pressure laminate surface

(HPL) - water resistant, high impact and scratch

resistant

extruded anodised aluminium drawer front

frame-handle combination

drawer fronts 3 mm solide-core HPL material

2 full extension drawers (soft-close mechanism)

28,5 kg

Drawer separation small (white matt)

200 x 45 x 244 mm, order no. 49540.0

200 x 45 x 276 mm, order no. 49540.1

200 x 45 x 324 mm, order no. 49540.2

Drawer separation large (white matt)

320 x 45 x 244 mm, order no. 49540.4

320 x 45 x 276 mm, order no. 49540.5

320 x 45 x 324 mm, order no. 49540.6

Accessories excl.

Mounting acc. incl.

Mounting information

Colours Body/Front/

Frame with handle

Colours Feet

Feet (2 pieces), aluminium, order no. 41122.0

Towel rail, anodized aluminium,

order no. 49095.1

Space saving siphon, order no. 89424.0

Installation set for furniture, order no. 49114.0

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

100 – White matt, with light aluminium frame

101 – Light walnut, with light aluminium frame

103 – Dark elm, with dark aluminium frame

999 – 39 other lacquered colours on request,

available with light or dark aluminium frame

light or dark aluminium feet

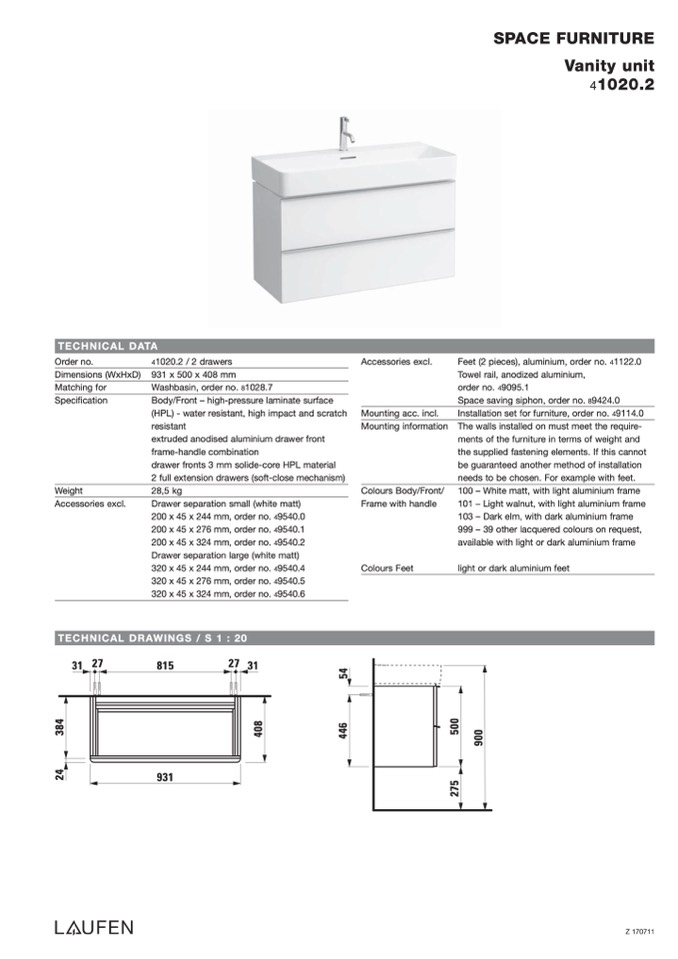

SPACE FURNITURE

Vanity unit

41020.2

TECHNICAL DRAWINGS / S 1 : 20

31 27

815

27 31

931

Z 170711

2

7

5

5

0

0

9

0

0

2

4

3

8

4

4

0

8

4

4

6

5

4
