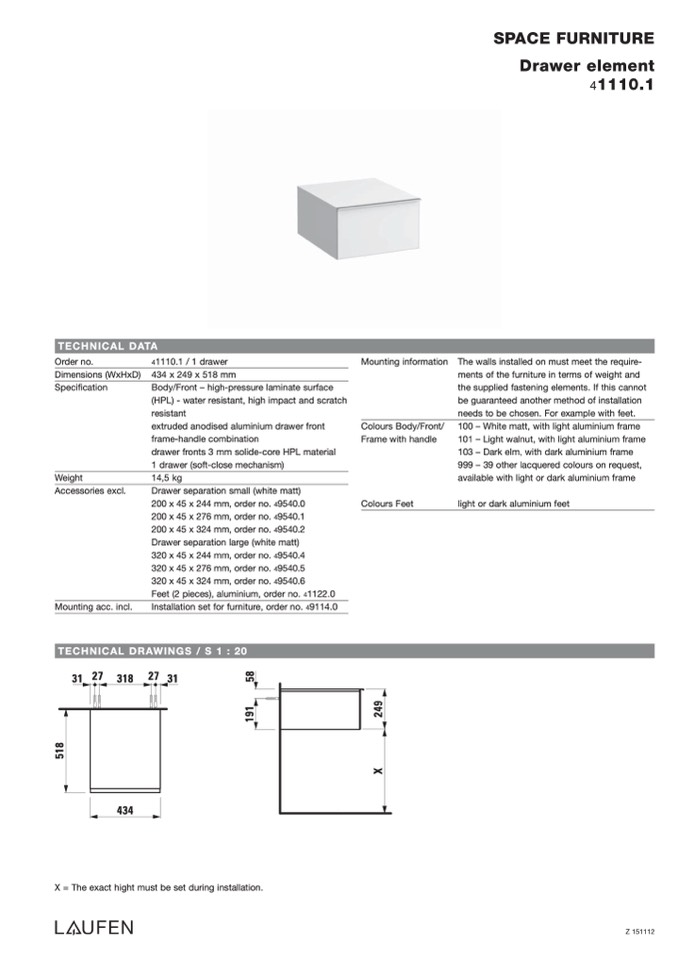

SPACE FURNITURE

Drawer element

41110.1

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Specification

Weight

Accessories excl.

Mounting acc. incl.

4

1110.1 / 1 drawer

434 x 249 x 518 mm

Body/Front – high-pressure laminate surface

(HPL) - water resistant, high impact and scratch

resistant

extruded anodised aluminium drawer front

frame-handle combination

drawer fronts 3 mm solide-core HPL material

1 drawer (soft-close mechanism)

14,5 kg

Drawer separation small (white matt)

200 x 45 x 244 mm, order no. 49540.0

200 x 45 x 276 mm, order no. 49540.1

200 x 45 x 324 mm, order no. 49540.2

Drawer separation large (white matt)

320 x 45 x 244 mm, order no. 49540.4

320 x 45 x 276 mm, order no. 49540.5

320 x 45 x 324 mm, order no. 49540.6

Feet (2 pieces), aluminium, order no. 41122.0

Installation set for furniture, order no. 49114.0

Mounting information

Colours Body/Front/

Frame with handle

Colours Feet

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen. For example with feet.

100 – White matt, with light aluminium frame

101 – Light walnut, with light aluminium frame

103 – Dark elm, with dark aluminium frame

999 – 39 other lacquered colours on request,

available with light or dark aluminium frame

light or dark aluminium feet

TECHNICAL DRAWINGS / S 1 : 20

31 27

318

27 31

434

X = The exact hight must be set during installation.

Z 151112

X

2

4

9

5

1

8

1

9

1

5

8
