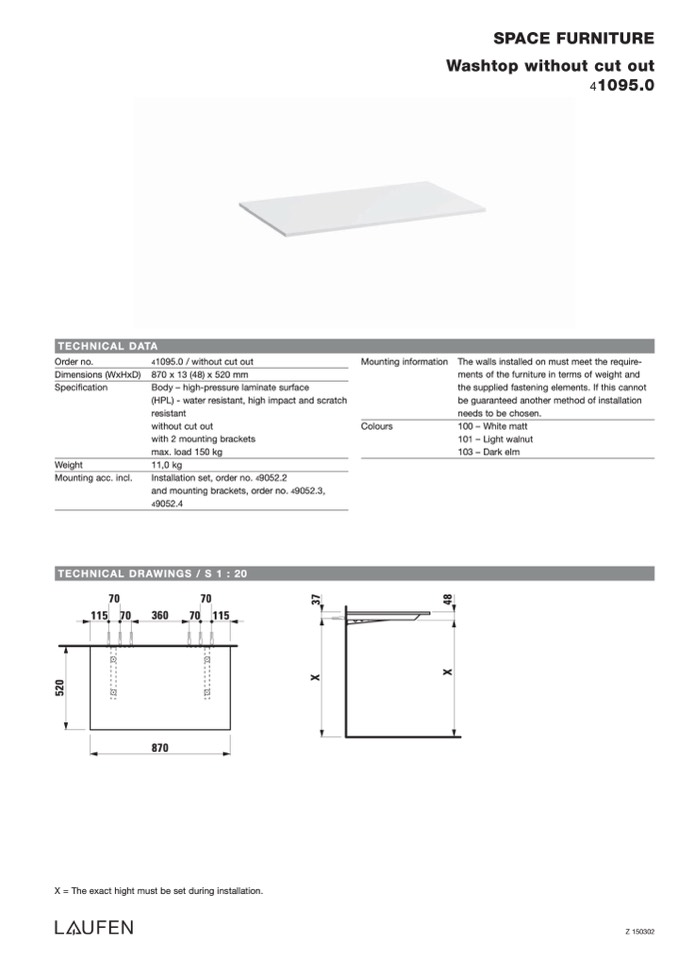

41095.0
TECHNICAL DATA
Order no.
Dimensions (WxHxD)
Specification
Weight
Mounting acc. incl.
4
1095.0 / without cut out
870 x 13 (48) x 520 mm
Body – high-pressure laminate surface
(HPL) - water resistant, high impact and scratch
resistant
without cut out
with 2 mounting brackets
max. load 150 kg
11,0 kg
Installation set, order no. 49052.2
and mounting brackets, order no. 49052.3,
4
9052.4
Mounting information
Colours
The walls installed on must meet the require-
ments of the furniture in terms of weight and
the supplied fastening elements. If this cannot
be guaranteed another method of installation
needs to be chosen.
100 – White matt
101 – Light walnut
103 – Dark elm
TECHNICAL DRAWINGS / S 1 : 20
70
70
115
70
360
70
115
870
X = The exact hight must be set during installation.
Z 150302
5
2
0
X
3
7
X
4
8
