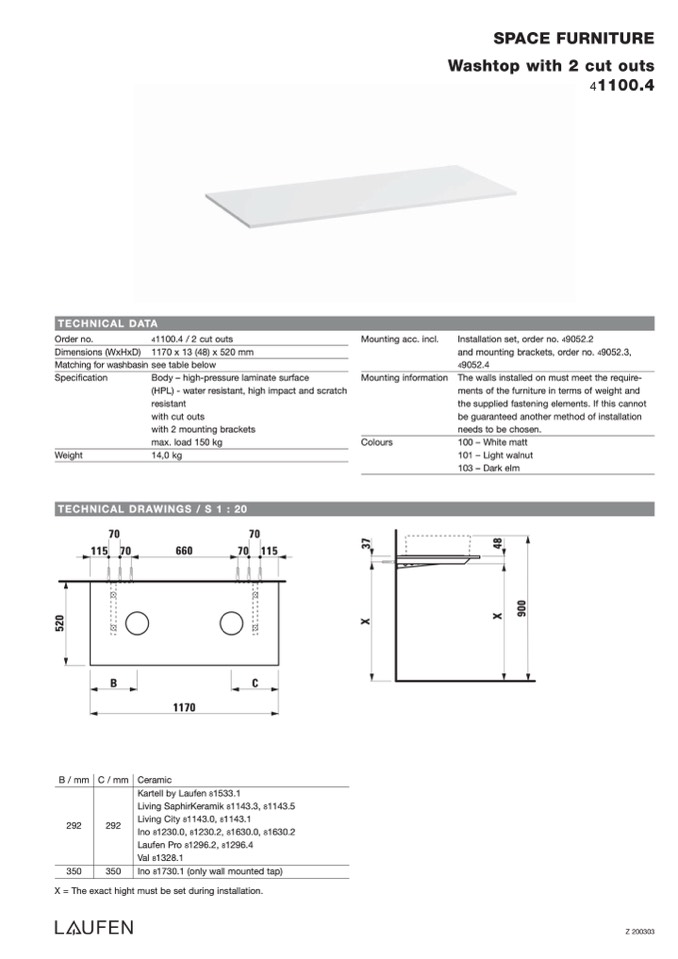

SPACE FURNITURE

Washtop with 2 cut outs

41100.4

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for washbasin

Specification

Weight

4

1100.4 / 2 cut outs

1170 x 13 (48) x 520 mm

see table below

Body – high-pressure laminate surface

(HPL) - water resistant, high impact and scratch

resistant

with cut outs

with 2 mounting brackets

max. load 150 kg

14,0 kg

Mounting acc. incl.

Mounting information

Colours

Installation set, order no. 49052.2

and mounting brackets, order no. 49052.3,

4

9052.4

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

100 – White matt

101 – Light walnut

103 – Dark elm

TECHNICAL DRAWINGS / S 1 : 20

70

115 70

70

660

70 115

B

C

1170

C / mm

350

X = The exact hight

Ceramic

Kartell by Laufen 81533.1

Living SaphirKeramik 81143.3, 81143.5

Living City 81143.0, 81143.1

Ino 81230.0, 81230.2, 81630.0, 81630.2

Laufen Pro 81296.2, 81296.4

Val 81328.1

Ino 81730.1 (only wall mounted tap)

must be set during installation.

B / mm

292

292

350

Z 200303

5

2

0

X

3

7

X

4

8

9

0

0
