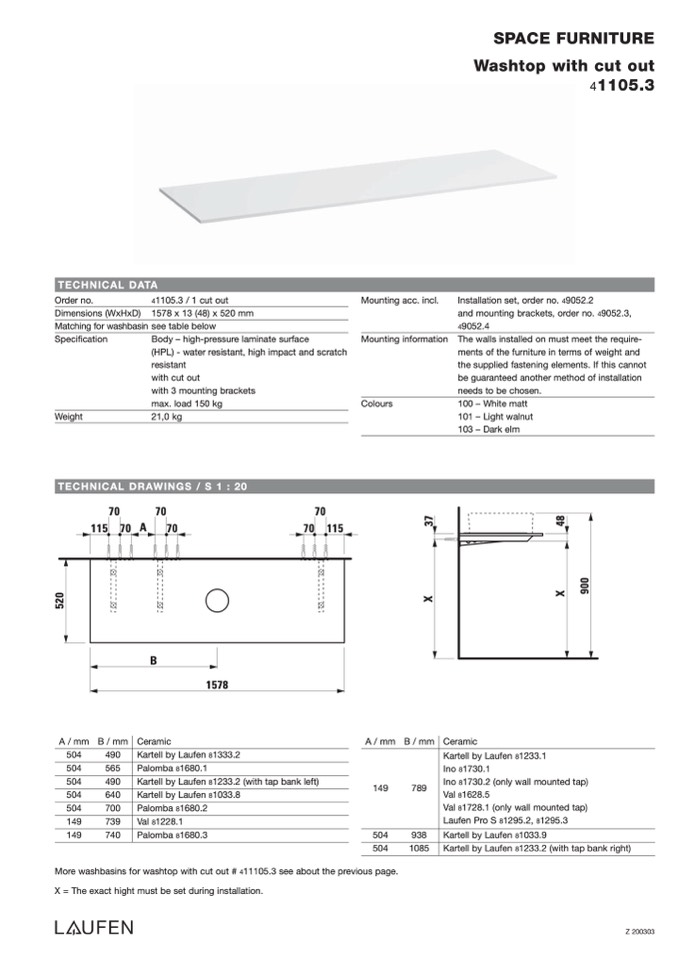

SPACE FURNITURE

Washtop with cut out

41105.3

TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for washbasin

Specification

Weight

4

1105.3 / 1 cut out

1578 x 13 (48) x 520 mm

see table below

Body – high-pressure laminate surface

(HPL) - water resistant, high impact and scratch

resistant

with cut out

with 3 mounting brackets

max. load 150 kg

21,0 kg

Mounting acc. incl.

Mounting information

Installation set, order no. 49052.2

and mounting brackets, order no. 49052.3,

4

9052.4

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

100 – White matt

101 – Light walnut

103 – Dark elm

Colours

TECHNICAL DRAWINGS / S 1 : 20

70

70

115 70 A

70

70

70 115

B

1578

A / mm

504

504

504

504

504

149

149

B / mm

490

565

490

640

700

739

740

Ceramic

Kartell by Laufen 81333.2

Palomba 81680.1

Kartell by Laufen 81233.2 (with tap bank left)

Kartell by Laufen 81033.8

Palomba 81680.2

Val 81228.1

Palomba 81680.3

A / mm

149

504

504

B / mm

789

938

1085

Ceramic

Kartell by Laufen 81233.1

Ino 81730.1

Ino 81730.2 (only wall mounted tap)

Val 81628.5

Val 81728.1 (only wall mounted tap)

Laufen Pro S 81295.2, 81295.3

Kartell by Laufen 81033.9

Kartell by Laufen 81233.2 (with tap bank right)

More washbasins for washtop with cut out # 411105.3 see about the previous page.

X = The exact hight must be set during installation.

Z 200303

5

2

0

X

3

7

X

4

8

9

0

0
