TECHNICAL DATA / WITH POP-UP WASTE
TECHNICAL DATA / WITHOUT POP-UP WASTE
Order no.
Connection
Spout length
Flow rate
Acoustic class
Specification
Accessories incl.
Surface finish
3.1138.1.004.111.1
3/8“ flexible connection hoses
110 mm
5.7 l/min (3 bar)
I/-
basin single-lever mixer
Eco+ function, cold water position in the middle
cartridge K25
fixed spout
pop-up waste 11⁄4“
chrome
Order no.
Connection
Spout length
Flow rate
Acoustic class
Specification
Surface finish
3.1138.1.004.110.1
3/8“ flexible connection hoses
110 mm
5.7 l/min (3 bar)
I/-
basin single-lever mixer
Eco+ function, cold water position in the middle
cartridge K25
fixed spout
chrome
TECHNICAL DRAWINGS
110
39
47
63
G1 1/4
G3/8
TECHNICAL DRAWINGS
110
47
G3/8

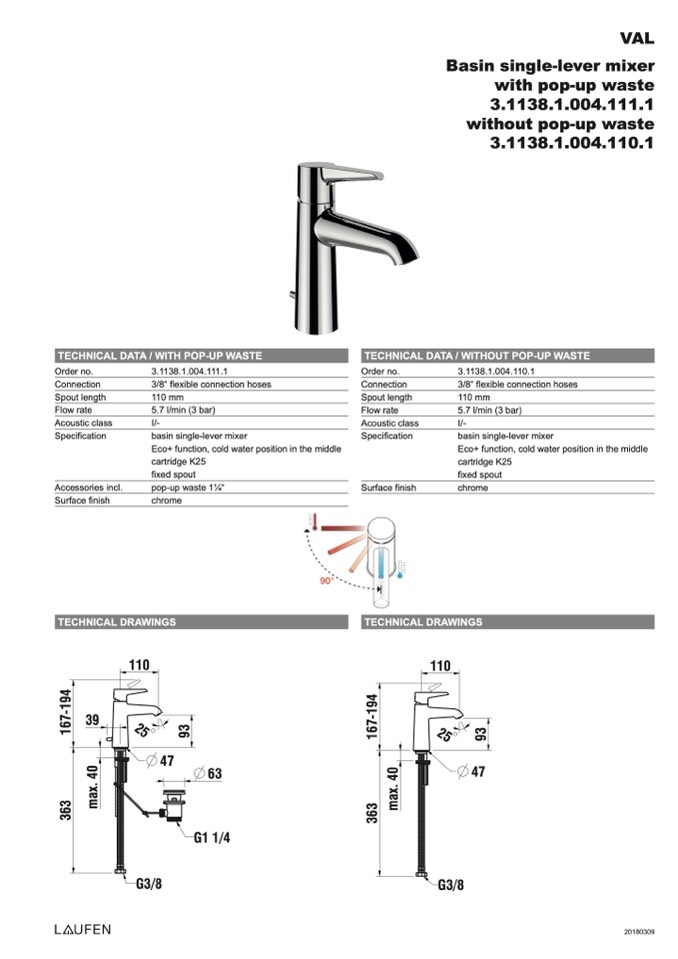

VAL
Basin single-lever mixer
with pop-up waste
3.1138.1.004.111.1
without pop-up waste
3.1138.1.004.110.1
2
5
25
3
6
3
m
a
x
.
4
0
1
6
7
-
1
9
4
3
6
3
m
a
x
.
4
0
1
6
7
-
1
9
4
9
3
9
3
20180309
