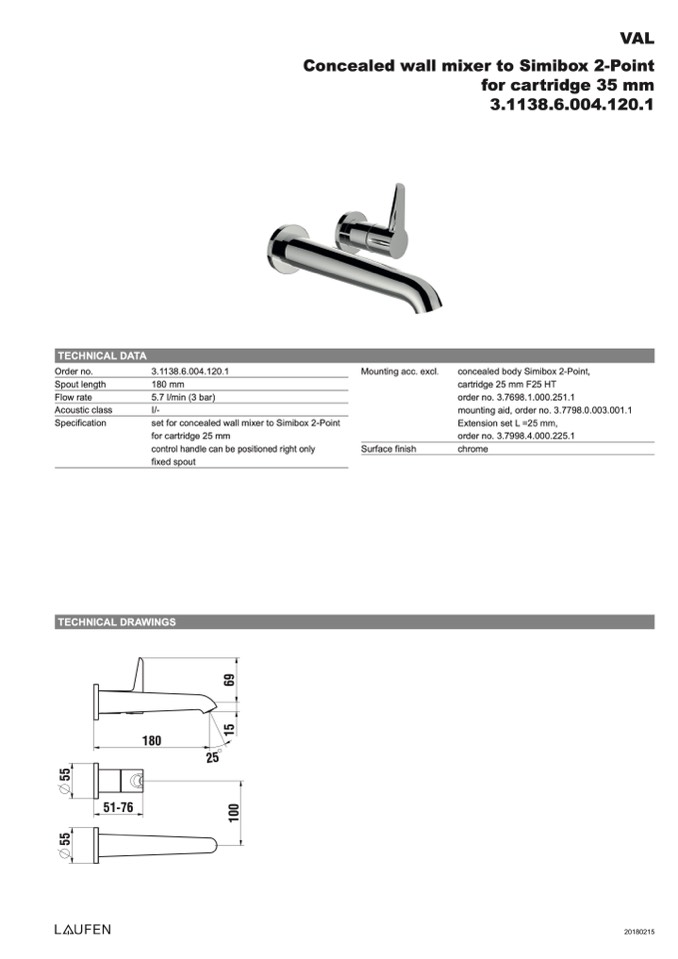

VAL

Concealed wall mixer to Simibox 2-Point

for cartridge 35 mm

3.1138.6.004.120.1

TECHNICAL DATA

Order no.

Spout length

Flow rate

Acoustic class

Specification

3.1138.6.004.120.1

180 mm

5.7 l/min (3 bar)

I/-

set for concealed wall mixer to Simibox 2-Point

for cartridge 25 mm

control handle can be positioned right only

fixed spout

Mounting acc. excl.

Surface finish

concealed body Simibox 2-Point,

cartridge 25 mm F25 HT

order no. 3.7698.1.000.251.1

mounting aid, order no. 3.7798.0.003.001.1

Extension set L =25 mm,

order no. 3.7998.4.000.225.1

chrome

TECHNICAL DRAWINGS

180

51-76

20180215

25

5

5

5

5

1

0

0

1

5

6

9
