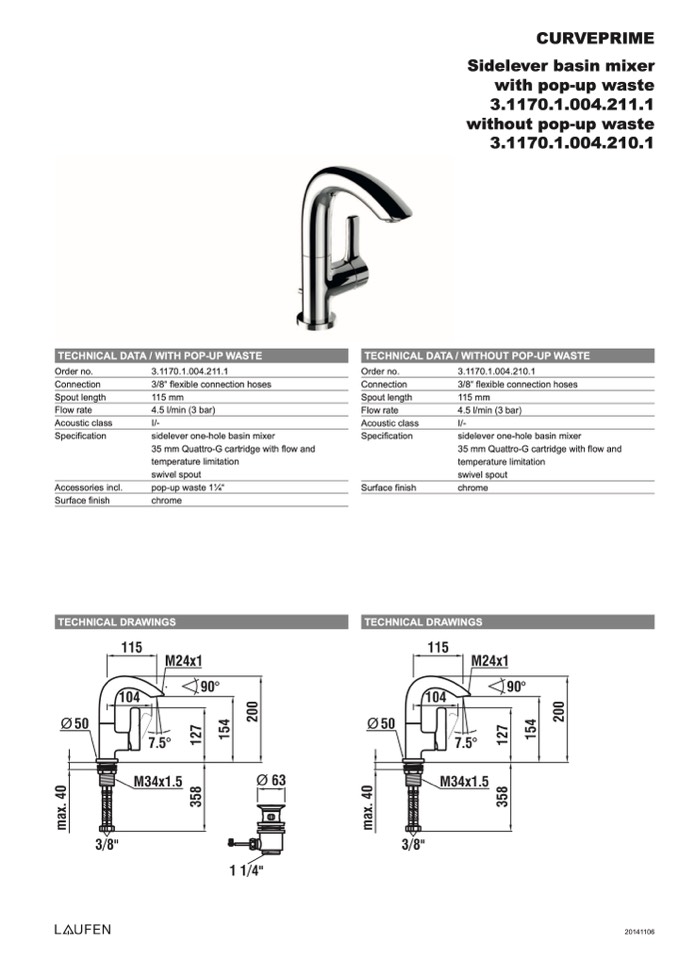

TECHNICAL DATA / WITH POP-UP WASTE

CURVEPRIME

Sidelever basin mixer

with pop-up waste

3.1170.1.004.211.1

without pop-up waste

3.1170.1.004.210.1

TECHNICAL DATA / WITHOUT POP-UP WASTE

Order no.

Connection

Spout length

Flow rate

Acoustic class

Specification

Accessories incl.

Surface finish

3.1170.1.004.211.1

3/8“ flexible connection hoses

115 mm

4.5 l/min (3 bar)

I/-

sidelever one-hole basin mixer

35 mm Quattro-G cartridge with flow and

temperature limitation

swivel spout

pop-up waste 11⁄4“

chrome

Order no.

Connection

Spout length

Flow rate

Acoustic class

Specification

Surface finish

3.1170.1.004.210.1

3/8“ flexible connection hoses

115 mm

4.5 l/min (3 bar)

I/-

sidelever one-hole basin mixer

35 mm Quattro-G cartridge with flow and

temperature limitation

swivel spout

chrome

TECHNICAL DRAWINGS

TECHNICAL DRAWINGS

20141106
