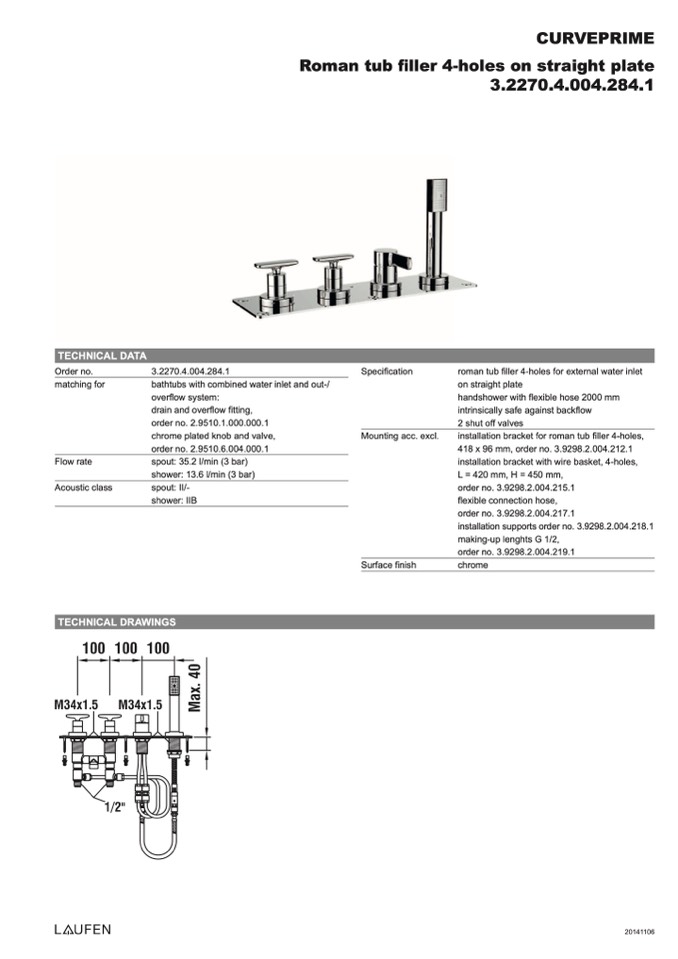

TECHNICAL DATA
Order no.
matching for
Flow rate
Acoustic class
3.2270.4.004.284.1
bathtubs with combined water inlet and out-/
overflow system:
drain and overflow fitting,
order no. 2.9510.1.000.000.1
chrome plated knob and valve,
order no. 2.9510.6.004.000.1
spout: 35.2 l/min (3 bar)
shower: 13.6 l/min (3 bar)
spout: II/-
shower: IIB
Specification
Mounting acc. excl.
Surface finish
roman tub filler 4-holes for external water inlet
on straight plate
handshower with flexible hose 2000 mm
intrinsically safe against backflow
2 shut off valves
installation bracket for roman tub filler 4-holes,
418 x 96 mm, order no. 3.9298.2.004.212.1
installation bracket with wire basket, 4-holes,
L = 420 mm, H = 450 mm,
order no. 3.9298.2.004.215.1
flexible connection hose,
order no. 3.9298.2.004.217.1
installation supports order no. 3.9298.2.004.218.1
making-up lenghts G 1/2,
order no. 3.9298.2.004.219.1
chrome
TECHNICAL DRAWINGS
20141106
