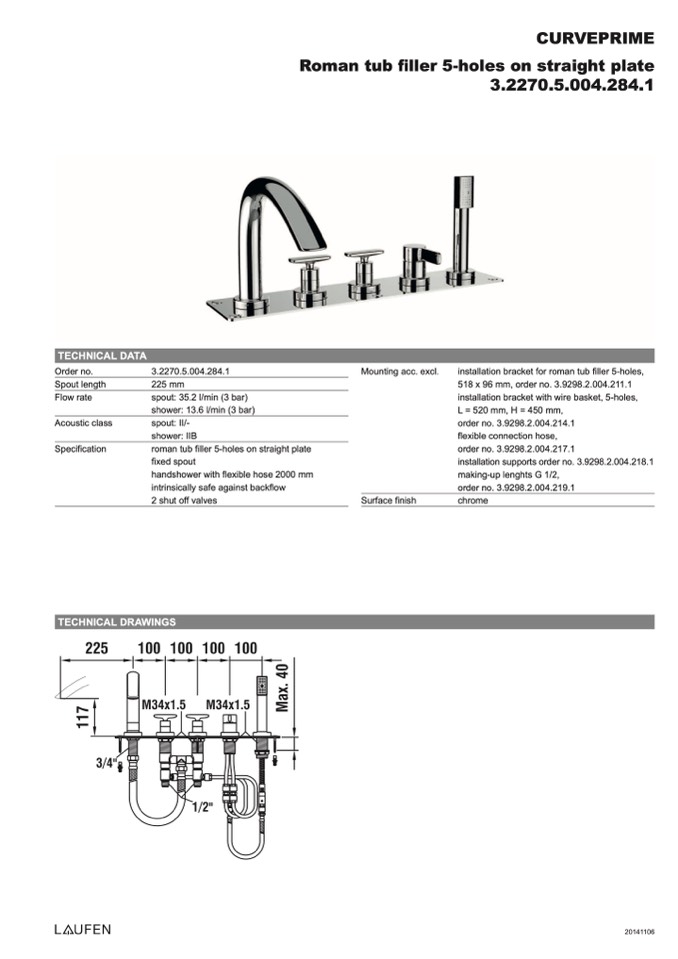

TECHNICAL DATA
Order no.
Spout length
Flow rate
Acoustic class
Specification
3.2270.5.004.284.1
225 mm
spout: 35.2 l/min (3 bar)
shower: 13.6 l/min (3 bar)
spout: II/-
shower: IIB
roman tub filler 5-holes on straight plate
fixed spout
handshower with flexible hose 2000 mm
intrinsically safe against backflow
2 shut off valves
Mounting acc. excl.
Surface finish
installation bracket for roman tub filler 5-holes,
518 x 96 mm, order no. 3.9298.2.004.211.1
installation bracket with wire basket, 5-holes,
L = 520 mm, H = 450 mm,
order no. 3.9298.2.004.214.1
flexible connection hose,
order no. 3.9298.2.004.217.1
installation supports order no. 3.9298.2.004.218.1
making-up lenghts G 1/2,
order no. 3.9298.2.004.219.1
chrome
TECHNICAL DRAWINGS
20141106
