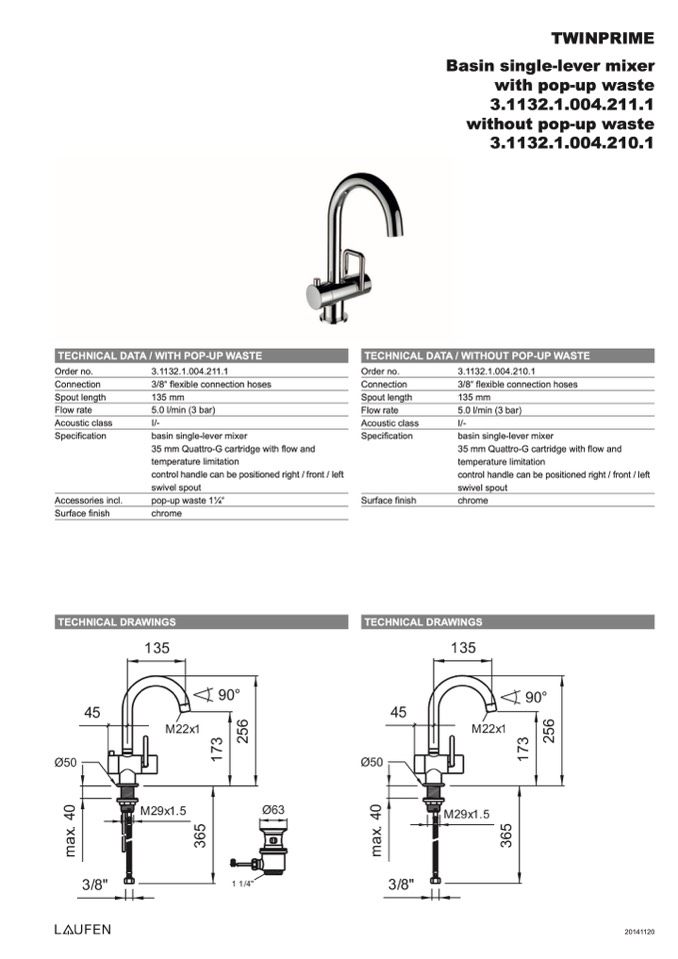

TECHNICAL DATA / WITH POP-UP WASTE

TWINPRIME

Basin single-lever mixer

with pop-up waste

3.1132.1.004.211.1

without pop-up waste

3.1132.1.004.210.1

TECHNICAL DATA / WITHOUT POP-UP WASTE

Order no.

Connection

Spout length

Flow rate

Acoustic class

Specification

Accessories incl.

Surface finish

3.1132.1.004.211.1

3/8“ flexible connection hoses

135 mm

5.0 l/min (3 bar)

I/-

basin single-lever mixer

35 mm Quattro-G cartridge with flow and

temperature limitation

control handle can be positioned right / front / left

swivel spout

pop-up waste 11⁄4“

chrome

Order no.

Connection

Spout length

Flow rate

Acoustic class

Specification

Surface finish

3.1132.1.004.210.1

3/8“ flexible connection hoses

135 mm

5.0 l/min (3 bar)

I/-

basin single-lever mixer

35 mm Quattro-G cartridge with flow and

temperature limitation

control handle can be positioned right / front / left

swivel spout

chrome

TECHNICAL DRAWINGS

TECHNICAL DRAWINGS

20141120
