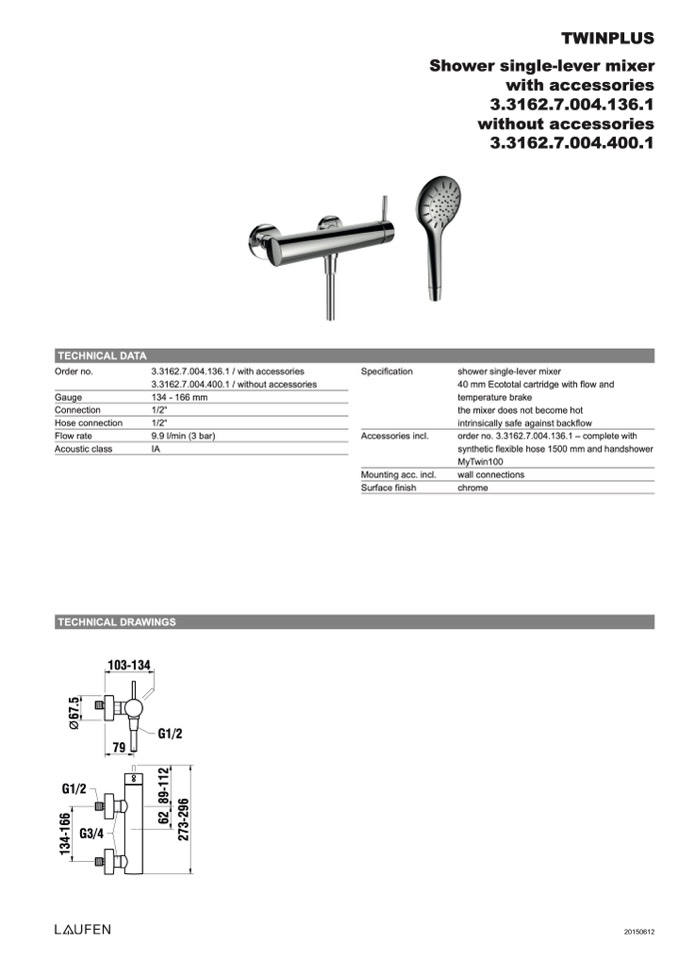

TWINPLUS

Shower single-lever mixer

with accessories

3.3162.7.004.136.1

without accessories

3.3162.7.004.400.1

TECHNICAL DATA

Order no.

Gauge

Connection

Hose connection

Flow rate

Acoustic class

3.3162.7.004.136.1 / with accessories

3.3162.7.004.400.1 / without accessories

134 - 166 mm

1/2“

1/2“

9.9 l/min (3 bar)

IA

Specification

Accessories incl.

Mounting acc. incl.

Surface finish

shower single-lever mixer

40 mm Ecototal cartridge with flow and

temperature brake

the mixer does not become hot

intrinsically safe against backflow

order no. 3.3162.7.004.136.1 – complete with

synthetic flexible hose 1500 mm and handshower

MyTwin100

wall connections

chrome

TECHNICAL DRAWINGS

103-134

G1/2

79

G1/2

G3/4

ECHELLE 2:35

20150612
