TECHNICAL DATA

Order no.

Gauge

Connection

Hose connection

Spout length

Flow rate

Acoustic class

3.2175.7.004.136.1 / with accessories

3.2175.7.004.400.1 / without accessories

134 - 166 mm

1/2“

1/2“

157 mm

spout: 20.5 l/min (3 bar)

shower: 9.9 l/min (3 bar)

spout: IC

shower: IA

Specification

Accessories incl.

Mounting acc. incl.

Surface finish

bath/shower single-lever mixer

40 mm Ecototal cartridge with flow and

temperature brake

the mixer does not become hot

fixed spout

automatic diverter

intrinsically safe against backflow

order no. 3.2175.7.004.136.1 – complete with

synthetic flexible hose 1500 mm and handshower

MyCity100

wall connections

chrome

TECHNICAL DRAWINGS

157

M24x1

91

G3/4

G1/2

G1/2

SCALE: 2:35

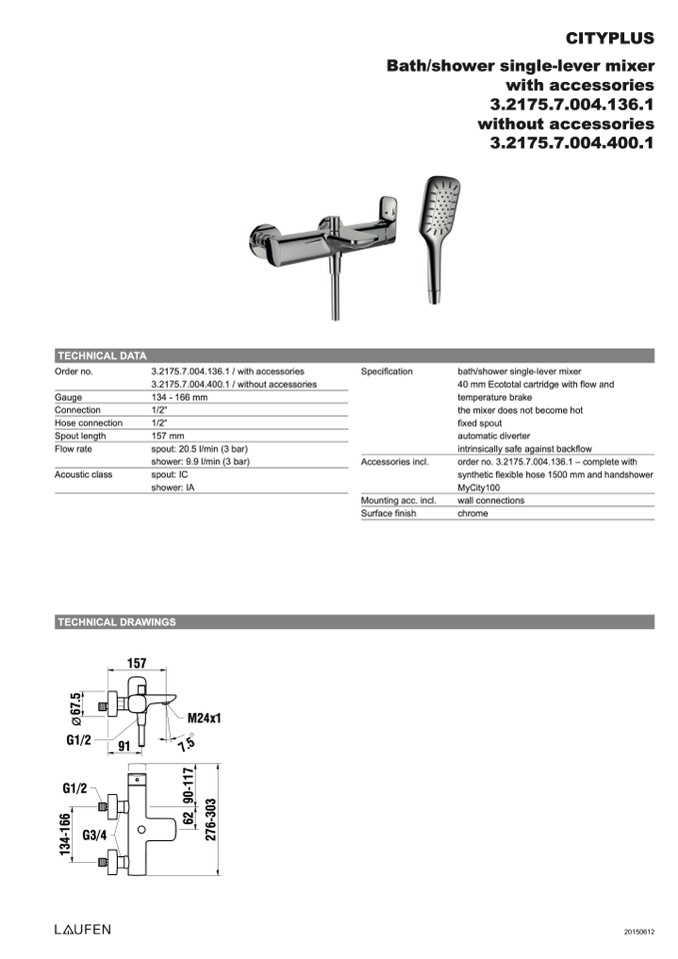

CITYPLUS

Bath/shower single-lever mixer

with accessories

3.2175.7.004.136.1

without accessories

3.2175.7.004.400.1

7.5

1

3

4

-

1

6

6

Ø

6

7

.

5

6

2

9

0

-

1

1

7

2

7

6

-

3

0

3

20150612
