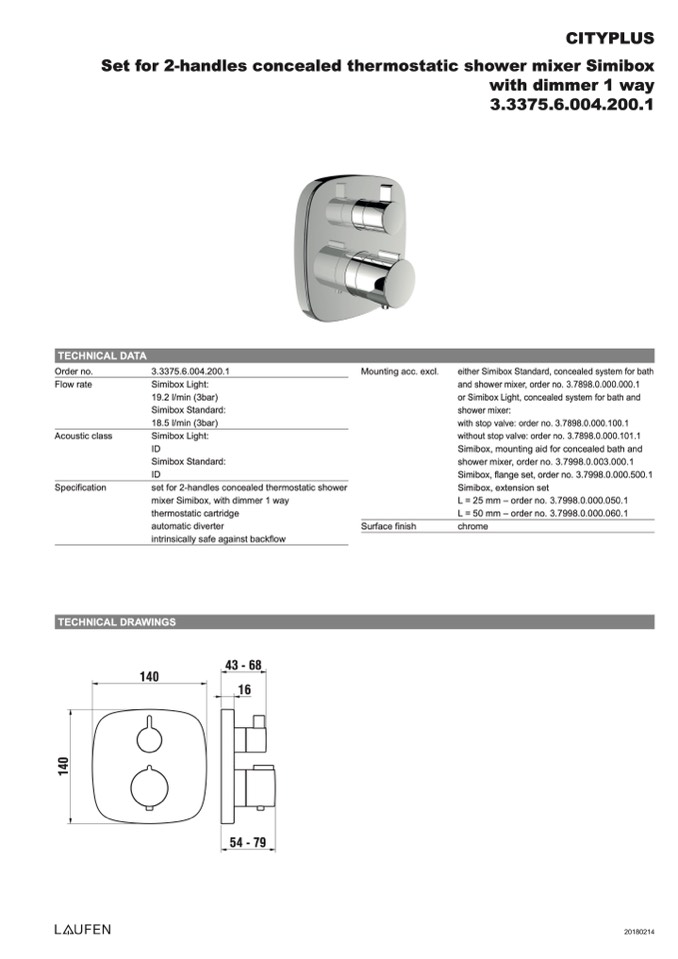

CITYPLUS

Set for 2-handles concealed thermostatic shower mixer Simibox

with dimmer 1 way

3.3375.6.004.200.1

TECHNICAL DATA

Order no.

Flow rate

Acoustic class

Specification

3.3375.6.004.200.1

Simibox Light:

19.2 l/min (3bar)

Simibox Standard:

18.5 l/min (3bar)

Simibox Light:

ID

Simibox Standard:

ID

set for 2-handles concealed thermostatic shower

mixer Simibox, with dimmer 1 way

thermostatic cartridge

automatic diverter

intrinsically safe against backflow

Mounting acc. excl.

either Simibox Standard, concealed system for bath

and shower mixer, order no. 3.7898.0.000.000.1

or Simibox Light, concealed system for bath and

shower mixer:

with stop valve: order no. 3.7898.0.000.100.1

without stop valve: order no. 3.7898.0.000.101.1

Simibox, mounting aid for concealed bath and

shower mixer, order no. 3.7998.0.003.000.1

Simibox, flange set, order no. 3.7998.0.000.500.1

Simibox, extension set

L = 25 mm – order no. 3.7998.0.000.050.1

L = 50 mm – order no. 3.7998.0.000.060.1

chrome

Surface finish

TECHNICAL DRAWINGS

140

43 - 68

16

54 - 79

20180214

1

4

0
