Order no.
Flow rate
Acoustic class
Specification
3.2375.6.004.210.1
Simibox Light:
spout: 21.2 l/min (3bar)
shower: 19.2 l/min (3bar)
Simibox Standard:
spout: 20.6 l/min (3bar)
shower: 18.5 l/min (3bar)
Simibox Light:
spout: IDD
shower: ID
Simibox Standard:
spout: IDD
shower: ID

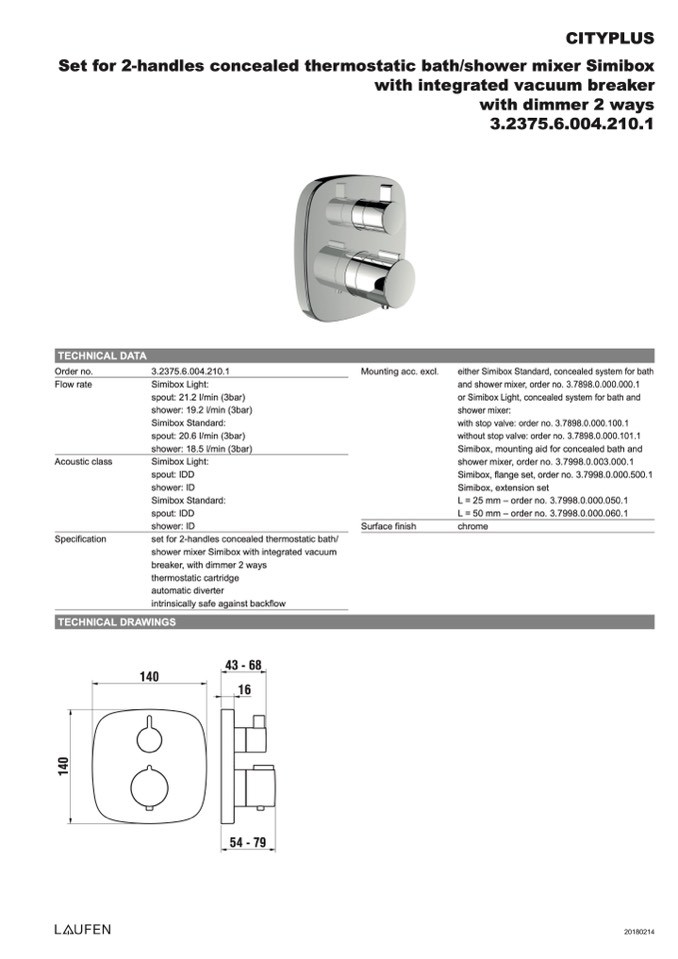

set for 2-handles concealed thermostatic bath/
shower mixer Simibox with integrated vacuum
breaker, with dimmer 2 ways
thermostatic cartridge
automatic diverter
intrinsically safe against backflow
Mounting acc. excl.
either Simibox Standard, concealed system for bath
and shower mixer, order no. 3.7898.0.000.000.1
or Simibox Light, concealed system for bath and
shower mixer:
with stop valve: order no. 3.7898.0.000.100.1
without stop valve: order no. 3.7898.0.000.101.1
Simibox, mounting aid for concealed bath and
shower mixer, order no. 3.7998.0.003.000.1
Simibox, flange set, order no. 3.7998.0.000.500.1
Simibox, extension set
L = 25 mm – order no. 3.7998.0.000.050.1
L = 50 mm – order no. 3.7998.0.000.060.1
chrome
Surface finish
20180214
1
4
0
