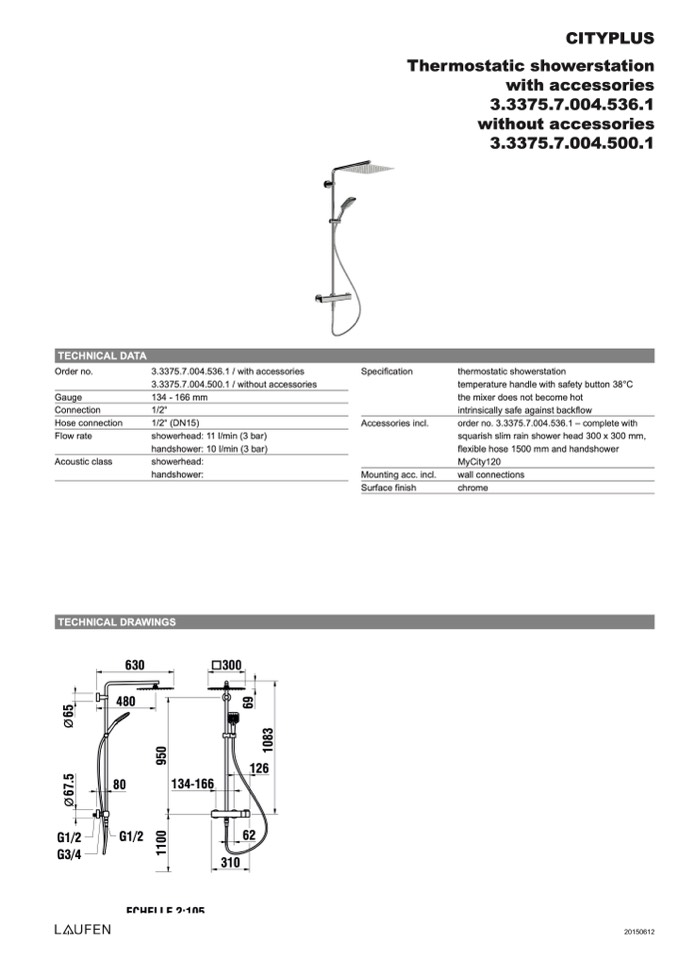

Order no.
Gauge
Connection
Hose connection
Flow rate
Acoustic class
3.3375.7.004.536.1 / with accessories
3.3375.7.004.500.1 / without accessories
134 - 166 mm
1/2“
1/2“ (DN15)
showerhead: 11 l/min (3 bar)
handshower: 10 l/min (3 bar)
showerhead:
handshower:
Specification
Accessories incl.
Mounting acc. incl.
Surface finish
thermostatic showerstation
temperature handle with safety button 38°C
the mixer does not become hot
intrinsically safe against backflow
order no. 3.3375.7.004.536.1 – complete with
squarish slim rain shower head 300 x 300 mm,
flexible hose 1500 mm and handshower
MyCity120
wall connections
chrome
1
1
0
0
9
5
0
Ø
6
7
.
5
Ø
6
5
6
9
1
0
8
3
20150612
