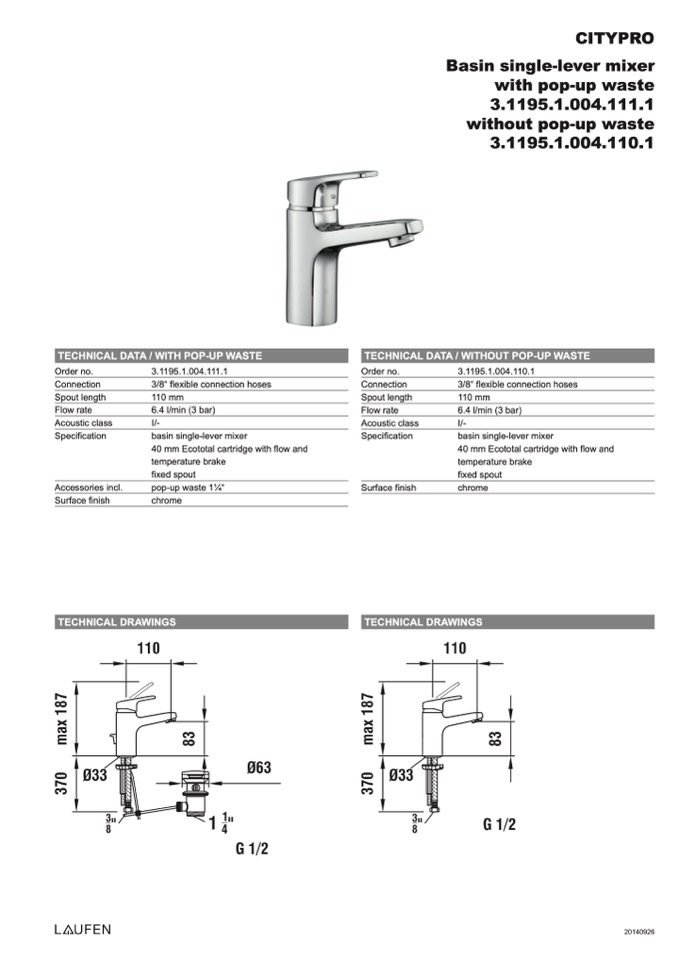

TECHNICAL DATA / WITH POP-UP WASTE
TECHNICAL DATA / WITHOUT POP-UP WASTE
Order no.
Connection
Spout length
Flow rate
Acoustic class
Specification
Accessories incl.
Surface finish
3.1195.1.004.111.1
3/8“ flexible connection hoses
110 mm
6.4 l/min (3 bar)
I/-
basin single-lever mixer
40 mm Ecototal cartridge with flow and
temperature brake
fixed spout
pop-up waste 11⁄4“
chrome
Order no.
Connection
Spout length
Flow rate
Acoustic class
Specification
Surface finish
3.1195.1.004.110.1
3/8“ flexible connection hoses
110 mm
6.4 l/min (3 bar)
I/-
basin single-lever mixer
40 mm Ecototal cartridge with flow and
temperature brake
fixed spout
chrome
TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
20140926
